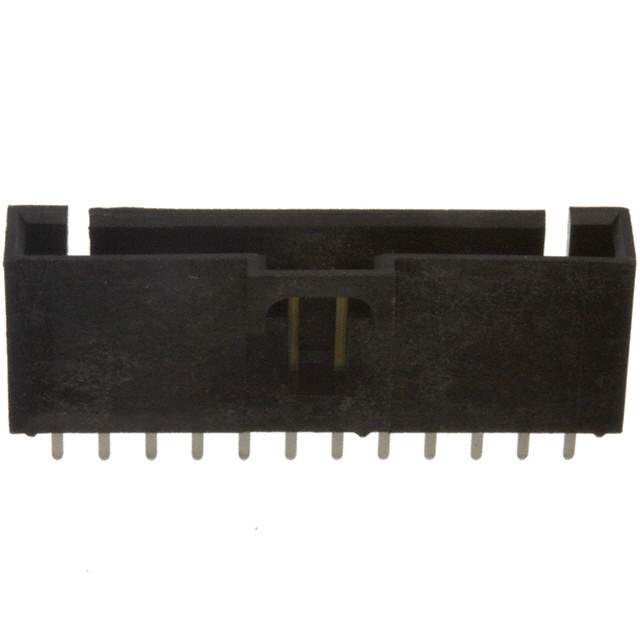

0705430116 Real Image
Same model may have multiple batches, images only for reference.

0705430116

Part No 0705430116
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.54MM / Connector Header Through Hole 12 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.470" (11.94mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 070543
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 705430116,WM4132,70543-0116
Standard Package 16
Win Source Part Number 1332851-0705430116
Ultra Librarian 3D Model Ultra Librarian 0705430116 CAD Model

Description

This Molex header male pin connector has 12 positions and is designed for through hole mounting.

  • Positions: 12
  • Mounting Type: Through Hole
  • Fastening Type: Latch Holder
  • Shrouding: 4 Walls
  • Contact Type: Male Pin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass Filled
  • Insulation Color: Black
  • Pitch: 0.100 inches (2.54 mm)
  • Contact Finish-Mating: Gold with a thickness of 30.0µin (0.76µm)
  • Contact Finish-Post: Tin with a thickness of 74.8µin (1.90µm)
  • Series: 70543
  • Base Product Number: 070543
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
