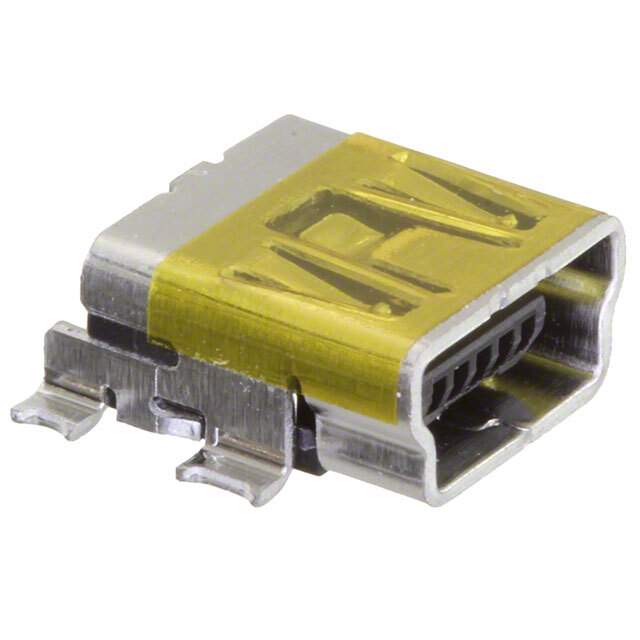

67503-1120 Real Image
Same model may have multiple batches, images only for reference.

67503-1120

Part No 67503-1120
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Conn Mini USB Type B RCP 5 POS 2.5mm Solder RA SMD 5 Terminal 1 Port Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Plating Gold
Country of Origin CN
Current Rating 1 A
Gender Female
Halogen Free Low Halogen
Housing Material Thermoplastic
Length 9.9 mm
Max Operating Temperature 50 °C
Max Voltage Rating (DC) 3.03 kV
Min Operating Temperature 0 °C
Mount Surface Mount
Number of Circuits 5
Number of Contacts 5
Number of Ports 1
Number of Rows 1
Number of Terminals 5
Orientation Right Angle
Packaging Tape & Reel (TR)
Pitch 2.5 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating (AC) 30 V
Win Source Part Number 1163996-67503-1120
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 67503-1120 CAD Model

Description

This female connector is a black thermoplastic housing designed by Molex, LLC. It has a 2.5mm pitch and can handle a current rating of 1A.

  • Housing Material: Thermoplastic
  • Housing Color: Black
  • Manufacturer: Molex, LLC
  • Pitch: 2.5mm
  • Current Rating: 1A
  • Contacts: 5
  • Orientation: Right-Angled
  • Length: 9.9mm
  • Contact Plating: Gold
  • Underplating: Tin
  • Mounting Type: Surface Mount
  • RoHS Compliant: Yes
  • Operating Temperature: 0°C to 50°C
  • Voltage Rating: 3.03kV DC
  • Application: Custom Parts
  • Halogen: Low Halogen
