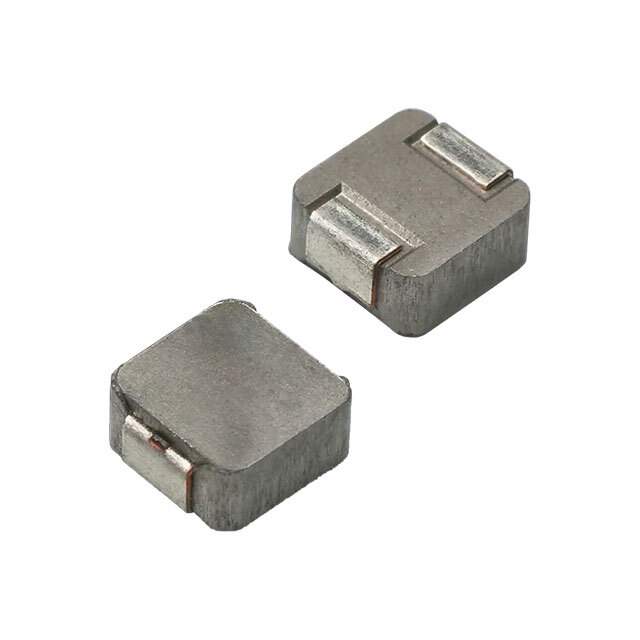

Same model may have multiple batches, images only for reference.

IHLP1616BZERR47MA1

Name: IHLP1616BZERR47MA1
Brand: Vishay
SKU: 1329333
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP1616BZERR47MA1
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-1616BZ-A1 .47 20% ER E3 / 470 nH Shielded Inductor 5.6 A 18mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Material - Core	Metal Composite
Inductance	470 nH
Tolerance	±20%
Current Rating (Amps)	5.6 A
Current - Saturation (Isat)	11.5A
Shielding	Shielded
DC Resistance (DCR)	18mOhm Max
Frequency - Self Resonant	97MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.079" (2.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	541-IHLP1616BZERR47MA1CT,541-IHLP1616BZERR47MA1DKR,541-IHLP1616BZERR47MA1TR
Standard Package	4,000
Win Source Part Number	1329333-IHLP1616BZERR47MA1
Ultra Librarian 3D Model	Ultra Librarian IHLP1616BZERR47MA1 CAD Model

Alternative Products

Description

The Vishay Dale Fixed Inductor is a surface mount inductor designed for use in a variety of applications.

Packaging: Reel
Package: 4,000
Inductance: 470nH
Tolerance: ±20%
Current Rating: 5.6A
Saturation Current: 11.5A
DC Resistance: 18mOhm max
Self-Resonant Frequency: 97MHz
Operating Temperature Range: -55°C to 125°C
AEC-Q200 Rated: Yes
MSL Level: 1 (Unlimited)
ROHS3 Compliant: Yes
