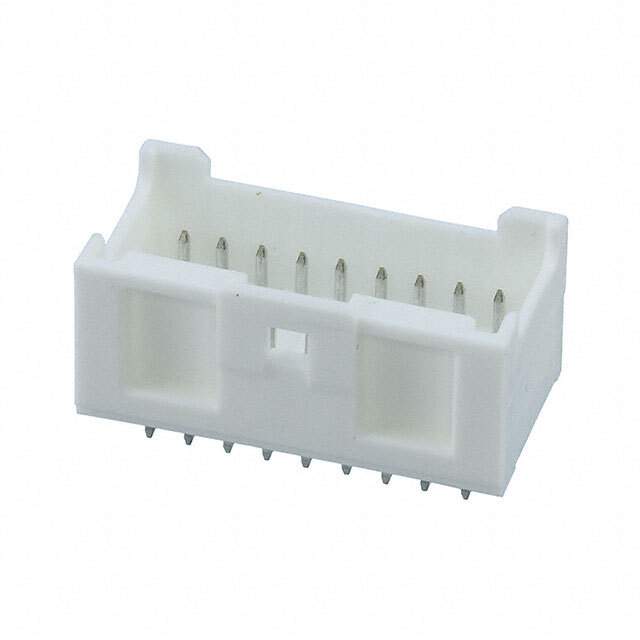

559171810 Real Image
Same model may have multiple batches, images only for reference.

559171810

Part No 559171810
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 2.0 WTB DUAL CONN DIP PLG HSG
Datasheet
559171810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series MicroClasp 55917
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 18
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.197" (5.00mm)
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.150" (3.81mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.366" (9.30mm)
Insulation Height 0.384" (9.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Mated Stacking Heights 13.2mm
Applications General Purpose, Industrial, Medical
Win Source Part Number 764045-559171810
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 559171810 CAD Model

Description

{"ProductId":702423,"FormattedDescription":"

The Molex, LLC electronic component with Win Source Part Number 764045-559171810 is a connector with 18 positions, a through-hole mounting style, and board guide features.

  • Series: MicroClasp 55917
  • Packaging: Bulk
  • Connector Type: Header, Male Pin
  • Features: All Positions Loaded
  • Rows: 2
  • Termination: Kinked Pin, Solder
  • Fastening Type: Latch Holder
  • Contact Material: Brass
  • Mated Stacking Heights: 13.2mm
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Applications: General Purpose, Industrial, Medical
  • Insulation Color: Natural
  • Category: Connectors and Interconnects
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing-Mating: 0.197" (5.00mm)
  • Post Contact Length: 0.126" (3.20mm)
  • Overall Contact Length: 0.366" (9.30mm)
  • Insulation Height: 0.384" (9.75mm)
  • Contact Shape: Square
  • Mating Contact Length: 0.150" (3.81mm)
  • Supply and Demand Status: Limited
"}
