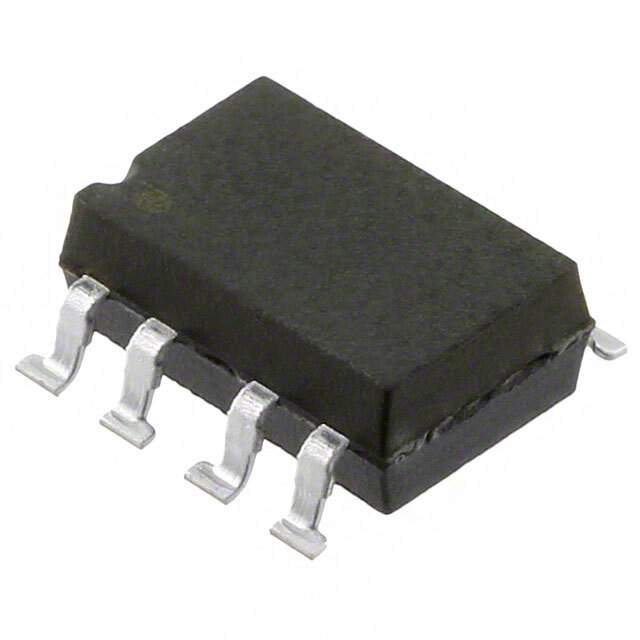

LH1520AAC Real Image
Same model may have multiple batches, images only for reference.

LH1520AAC

Part No LH1520AAC
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-8 SSR DUAL 1 FORM A
Datasheet
LH1520AAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 20 Ohm
Load Current 110mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 018597-LH1520AAC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LH1520AAC CAD Model

Description

The Vishay LH1520AAC is a DPST (2 Form A) relay with a load current of 110mA and a voltage load range of 0 to 350 V.

  • Load Current: 110mA
  • Voltage Load Range: 0 to 350 V
  • Voltage Input: 1.26VDC
  • Output Type: AC, DC
  • Packaging: Tube/rail
  • Termination Style: Gull wing
  • Mounting: SMD (SMT)
  • Max on Resistance: 20 Ohm
  • Supply and Demand Status: Balanced
