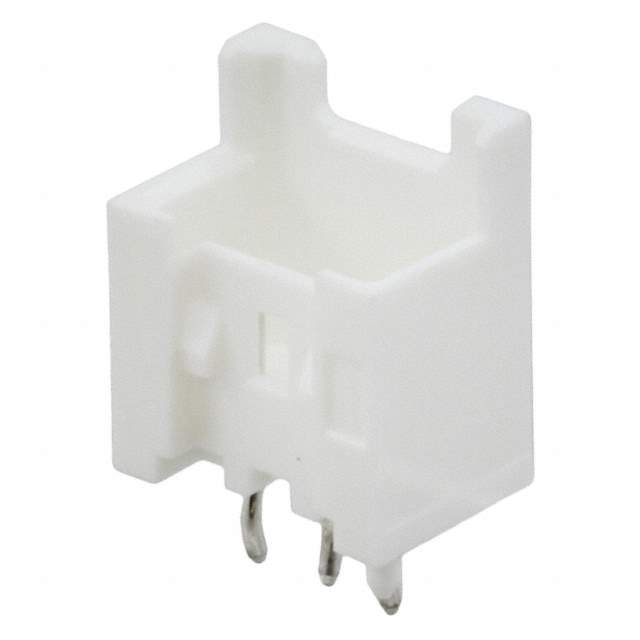

533750310 Real Image
Same model may have multiple batches, images only for reference.

533750310

Part No 533750310
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Mini-Lock 53375
Package Bag
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.453" (11.50mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBTP), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 053375
Other Names 053375-0310,533750310,53375-0310,WM9816,0533750310
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293218-533750310
Ultra Librarian 3D Model Ultra Librarian 533750310 CAD Model

Description

The Molex Mini-Lock 53375 header connector is a 3-position connector with a board guide feature.

  • Positions: 3
  • Board Guide: Yes
  • Connector Type: Rectangular Connector
  • Contact Type: Male Pins
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 250V
  • Fastening Type: Locking Ramp
  • Termination: Kinked Pin, Solder
  • Application: Board to cable/wire
  • Pitch: 0.098" (2.50mm)
  • Material Flammability Rating: UL94 V-0
  • Applications: General Purpose and Industrial
  • Package: Bag
  • Standard Package: 2,000
  • Insulation Material: Polybutylene Terephthalate (PBTP), Glass Filled
  • Shrouding: Shrouded with 4 Walls
  • Contact Shape: Circular
  • Operating Temperature: -40°C to 105°C
