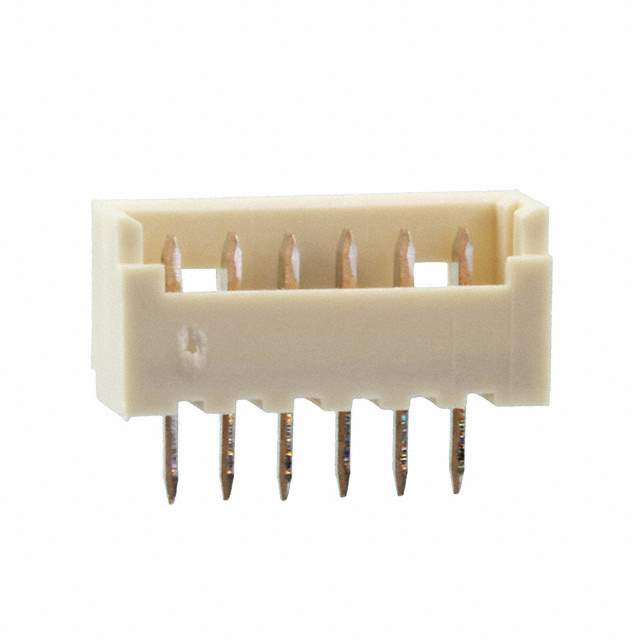

Same model may have multiple batches, images only for reference.

530470610

Name: 530470610
Brand: Molex, LLC
SKU: 420399
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	530470610
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 6POS 1.25MM VERT TIN
Datasheet	530470610 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Tray
Status	Active
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.049" (1.25mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.089" (2.25mm)
Contact Length - Post	0.091" (2.30mm)
Insulation Height	0.165" (4.20mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	35μin (0.90μm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	Automotive, General Purpose, Industrial, Medical
Win Source Part Number	1006052-530470610
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 530470610 CAD Model

Description

The Molex, LLC 1006052-530470610 is a board to cable/wire connector with a 6-position header.

Suitable For Use In: automotive, general purpose, industrial, and medical applications
Feature: shrouded with 4 walls
Pitch-Mating: 0.049 inches (1.25mm)
Contact Finish-Mating: tin
Thickness: 35μin (0.90μm)
Insulation Material: polyamide (PA66), nylon 6/6
Color: natural
Contact Length: not specified
Current Rating: not specified
