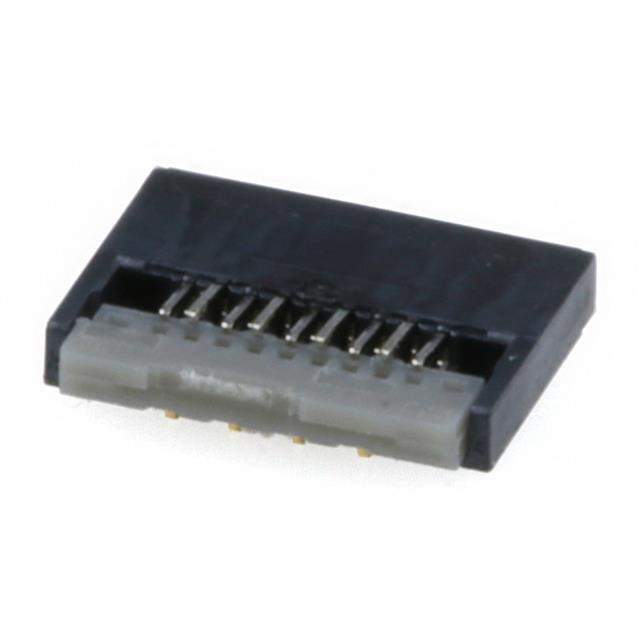

5047540920 Real Image
Same model may have multiple batches, images only for reference.

5047540920

Part No 5047540920
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.3 Fpc Backflip Hsgassy 9Ckt Embstppkg / Molex Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Glass, Nylon, Polyamide
Contact Plating Gold
Country of Origin JP
Current Rating 200 mA
Flammability Rating UL94 V-0
Halogen Free Low Halogen
Housing Material Polymer
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 9
Number of Pins 9
Number of Positions 9
Number of Rows 1
Orientation Right Angle
Pitch 304.8 µm
Plating Gold
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1121739-5047540920
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5047540920 CAD Model

Description

This Molex FFC/FPC connector is a 9-position, right angle connector with a pitch of 304.8 µm and a current rating of 200 mA.

  • Pitch: 304.8 µm
  • Current Rating: 200 mA
  • Voltage Rating: 50 V
  • Housing Material: Polymer
  • Actuator Material: Glass, Nylon, Polyamide
  • Contact Plating: Gold
  • Termination: Solder
  • Rows: 1
  • Circuits: 9
  • Pins: 9
  • Compliance: RoHS
  • Flammability Rating: UL94 V-0
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 85 °C
  • Halogen: Low Halogen
  • Supply/Demand: Limited
