Same model may have multiple batches, images only for reference.

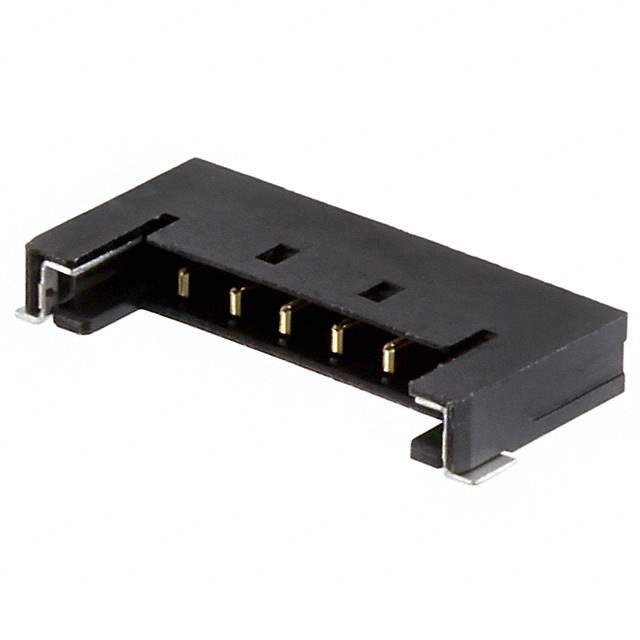

5040500691 Real Image
Same model may have multiple batches, images only for reference.

5040500691

Part No 5040500691
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 1.5MM / Connector Header Surface Mount, Right Angle 6 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Pico-Lock 504050
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.059" (1.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.079" (2.00mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.94µin (0.100µm)
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 150V
Applications Automotive, General Purpose, Industrial, Lighting, Telecommunications
Base Product Number 504050
Standard Package 2,700 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845812-5040500691
Ultra Librarian 3D Model Ultra Librarian 5040500691 CAD Model

Description

The Pico-Lock 504050 Headers are the perfect solution for your electrical connection needs.

  • Series: Pico-Lock 504050
  • Positions: 6
  • Termination: Solder
  • Contact Gender: Male blade
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Mounting Type: Surface Mount, Right Angle
  • Fastening Type: Detent Lock
  • Voltage Rating: 150V
  • Style: Board to Cable/Wire
  • Pitch: 0.059"
  • Insulation Material: Polyamide (PA)
  • Standard Package: 2,700 pcs
  • Manufacturer: Molex, LLC
