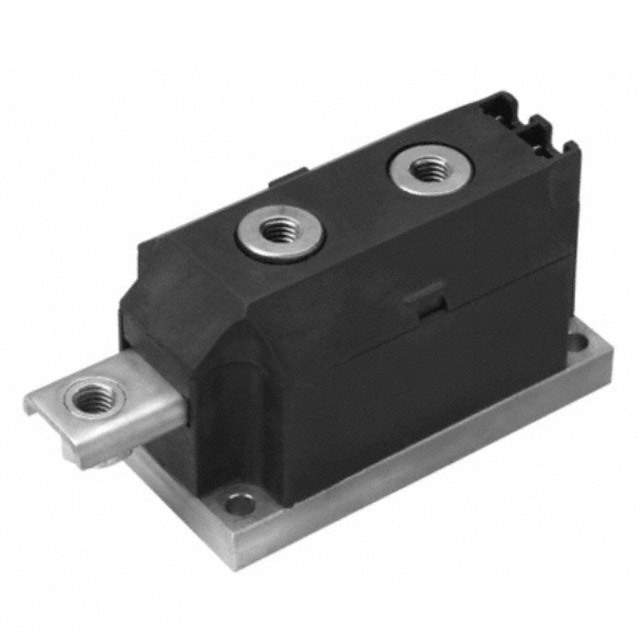

VSKT250-16 Real Image
Same model may have multiple batches, images only for reference.

VSKT250-16

Part No VSKT250-16
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR DBL HISCR 1600V 250A MAGNPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Part Status Obsolete(EOL)
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1600V
Current - On State (It (AV)) (Maximum) 250A
Current - On State (It (RMS)) (Maximum) 555A
Voltage - Gate Trigger (Vgt) (Maximum) 3V
Current - Gate Trigger (Igt) (Maximum) 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8500A, 8900A
Current - Hold (Ih) (Maximum) 500mA
Mounting Chassis Mount
Package 3-MAGN-A-PAK
Win Source Part Number 777103-VSKT250-16
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VSKT250-16 CAD Model

Description

The VSKT250-16 is an obsolete SCR (Silicon Controlled Rectifier) manufactured by Vishay Semiconductor Diodes Division.

  • Voltage Off State: 1600V
  • Non-Repetitive Surge: 8500A @ 50Hz, 8900A @ 60Hz
  • Structure: Series Connection - All SCRs
  • SCRs and Diodes: 2 SCRs and Diodes
  • Maximum On-State Current: 555A
  • Gate Trigger Voltage: 3V
  • Gate Trigger Current: 200mA
  • Hold Current: 500mA
  • Maximum On-State Average Current: 250A
  • Mounting Type: Chassis Mount
  • Popularity: Medium
  • Status: Limited Supply and Demand
