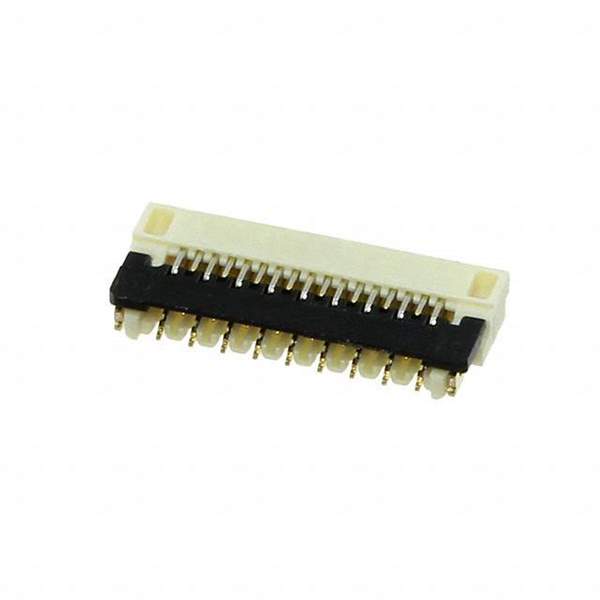

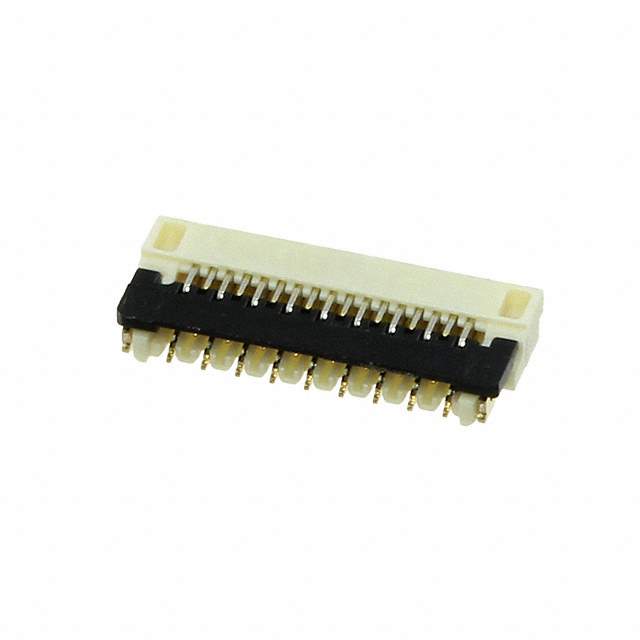

5035661700 Real Image
Same model may have multiple batches, images only for reference.

5035661700

Part No 5035661700
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FPC BOTTOM 17POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Position Connector
Manufacturer Molex, LLC
Series Easy-On 503566
Package Reel - TR
Part Status Obsolete
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 503566-1700, WM8981DKR-ND, 23-503566-1700DKR, WM8981DKR, WM8981CT, 503566-1700-TR750, WM8981TR, WM8981TR-ND, WM8981CT-ND, 23-503566-1700CT, 23-5035661700TR
Quantity per package 750
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 856307-5035661700
Ultra Librarian 3D Model Ultra Librarian 5035661700 CAD Model

Description

The 856307-5035661700 is a position connector from the Easy-On 503566 series of Molex, LLC. The component is packaged in a reel-TR and has a quantity of 750 per package. The component is ECCN EAR99 and REACH unaffected, with an MSL level of 1 (unlimited) and an HTSUS of 8536.69.4051.
