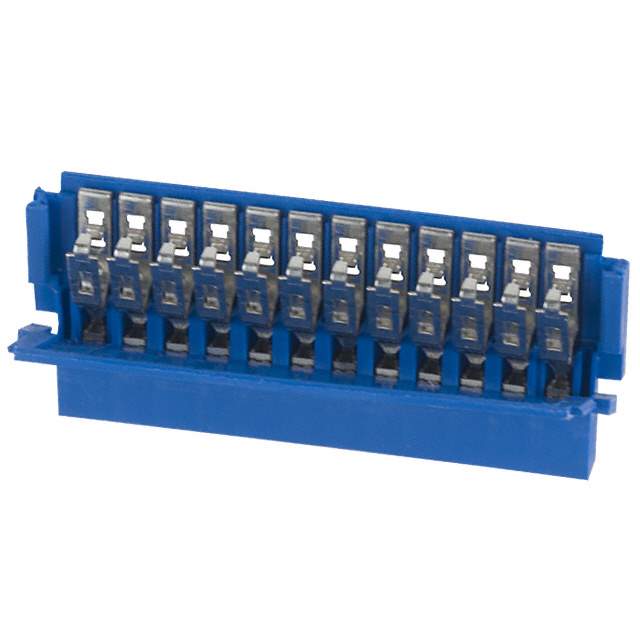

65801-012LF

Part No 65801-012LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC RCPT 12POS 2.54MM / 12 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series Clincher™
Package Tray
Flat Flex Type FFC, FPC
Mounting Type Free Hanging (In-Line)
Connector/Contact Type Receptacle
Number of Positions 12
Pitch 0.100" (2.54mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Copper Nickel Alloy
Contact Finish Tin
Housing Material Thermoplastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 500V
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Contact Finish Thickness 100.0µin (2.54µm)
Housing Color Blue
Actuator Color Black
Mating Cycles 100
Base Product Number 65801
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-2168,65801012LF
Standard Package 36
Win Source Part Number 1212738-65801-012LF
Ultra Librarian 3D Model Ultra Librarian 65801-012LF CAD Model

Description

This connector falls under the category of FFC, FPC (Flat Flexible) Connectors with Win Source Part Number 1212738-65801-012LF, and it belongs to the Clincher™ series from Amphenol ICC (FCI).

  • Series: Clincher™
  • Number of Positions: 12
  • Pitch: 0.100" (2.54mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0μin (2.54μm)
  • Package: Tray
  • Contact Material: Copper Nickel Alloy
  • Voltage Rating: 500V
  • Flat Flex Type: FFC, FPC
  • Connector/Contact Type: Receptacle
  • FFC, FCB Thickness: 0.30mm, 0.33mm
  • Locking Feature: Slide Lock
  • Cable End Type: Straight, Tapered
  • Housing Material: Thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Blue
  • Standard Package: 36
  • Mating Cycle: 100
  • Mounting Type: Free Hanging (In-Line)
  • Operating Temperature: -65°C to 105°C
  • Actuator Color: Black
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 2A
  • REACH: Affected
  • HTSUS: 8536.69.4051
  • Other Names: 609-2168, 65801012LF
  • Base Product Number: 65801
