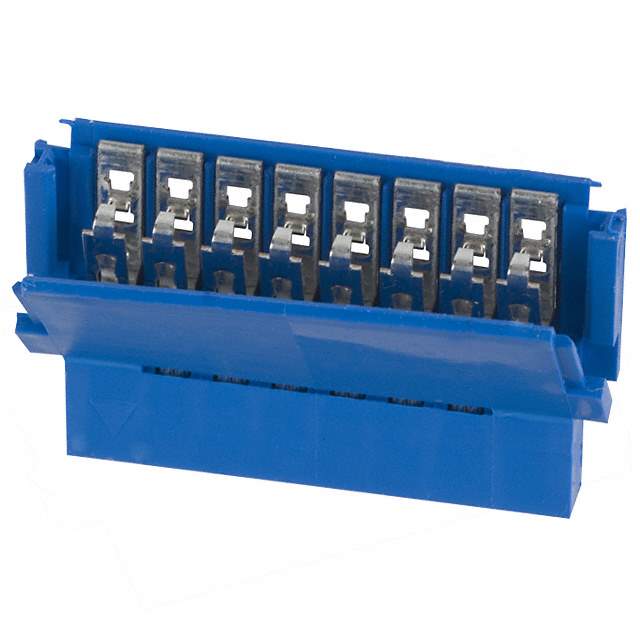

65801-008LF Real Image
Same model may have multiple batches, images only for reference.

65801-008LF

Part No 65801-008LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC RCPT 8POS 2.54MM / 8 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series Clincher™
Package Tray
Flat Flex Type FFC, FPC
Mounting Type Free Hanging (In-Line)
Connector/Contact Type Receptacle
Number of Positions 8
Pitch 0.100" (2.54mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Copper Nickel Alloy
Contact Finish Tin
Housing Material Thermoplastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 500V
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Contact Finish Thickness 100.0µin (2.54µm)
Housing Color Blue
Actuator Color Black
Mating Cycles 100
Base Product Number 65801
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 65801008LF,609-2164
Standard Package 48
Win Source Part Number 1221159-65801-008LF
Ultra Librarian 3D Model Ultra Librarian 65801-008LF CAD Model

Description

The Amphenol Clincher™ FFC/FPC Connector is an 8-position electronic component with a pitch of 0.100" (2.54mm).

  • GPTDescription: It has solder retention and a zero insertion force (ZIF) feature.
  • GPTDescription: The contact finish is tin, and the contact material is copper nickel alloy.
  • GPTDescription: The voltage rating is 500V, and the FFC/FCB thickness is 0.30mm or 0.33mm.
  • GPTDescription: It has a slide lock locking feature and a straight or tapered cable end type.
  • GPTDescription: The housing material is thermoplastic, and the housing color is blue.
  • GPTDescription: It is RoHS compliant and has a temperature range of -65°C to 105°C.
