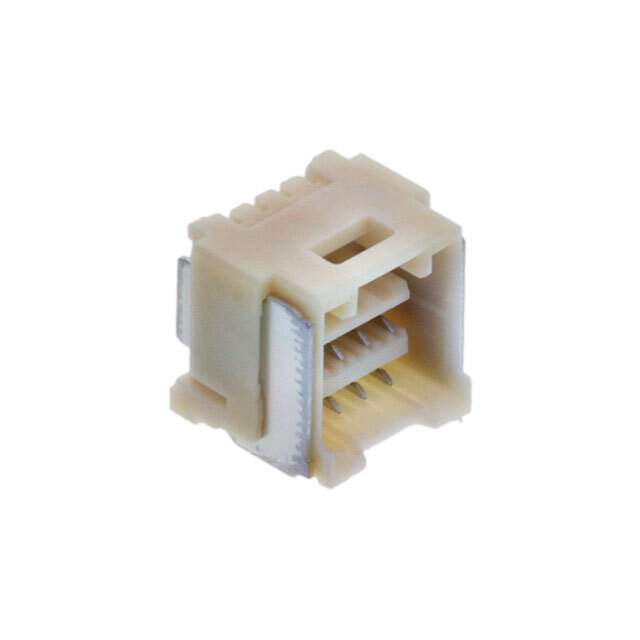

5031480890 Real Image1 5031480890 Real Image2
Same model may have multiple batches, images only for reference.
5031480890 Real Image1 5031480890 Real Image2
5031480890 Real Image1 5031480890 Real Image2
Same model may have multiple batches, images only for reference.

5031480890

Part No 5031480890
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 8POS 0.059 TIN SMD R/A / 8 Position Receptacle Connector 0.059" (1.50mm) Surface Mount, Right Angle Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr Molex, LLC
Series CLIK-Mate 503148
Package Tape & Reel
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.059" (1.50mm)
Number of Rows 2
Row Spacing - Mating -
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Insulation Color Beige
Insulation Height 0.360" (9.14mm)
Contact Length - Post -
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights -
Ingress Protection -
Features Pick and Place, Solder Retention
Current Rating (Amps) -
Voltage Rating -
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Resin
Contact Shape -
Contact Material Copper Alloy
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number 503148
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 550 pcs
Win Source Part Number 1380862-5031480890
Ultra Librarian 3D Model Ultra Librarian 5031480890 CAD Model

Description

The 1380862-5031480890 is a CLIK-Mate 503148 Header Connector from Molex.

  • Series: CLIK-Mate 503148
  • Positions: 8
  • Features: Pick and place and solder retention capabilities
  • Connector Type: Receptacle connector
  • Contact Type: Forked contacts
  • Loaded: All positions
  • Rows: 2
  • Termination: Solder
  • Latch Holder: Yes
  • Contact Material: Copper alloy
  • Applications: Automotive, general purpose, industrial, lighting, and medical
  • Standard Package: 550 pcs
  • Mounting Type: Surface mount and right angle mounting
  • Operating Temperature Range: -40°C to 105°C
