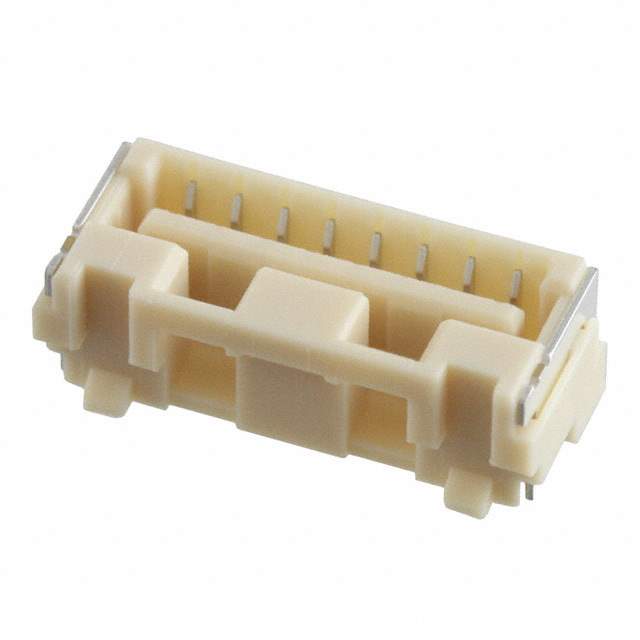

5023820870 Real Image
Same model may have multiple batches, images only for reference.

5023820870

Part No 5023820870
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 8POS 0.049 TIN SMD / 8 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer Molex
Packaging Reel - TR
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.049" (1.25mm)
Number of Rows 1
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Insulation Color Natural
Insulation Height 0.173" (4.40mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Solder Retention
Current Rating (Amps) 1A
Voltage Rating 50V
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Resin
Contact Material Copper Alloy
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number 502382
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM4785CT,WM4785TR,WM4785DKR,502382-0870
Standard Package 1,400
Win Source Part Number 1332853-5023820870
Ultra Librarian 3D Model Ultra Librarian 5023820870 CAD Model

Description

The Molex 1332853-5023820870 is an eight-position receptacle connector with a forked contact type.

  • Positions: 8
  • Contact Type: Forked
  • Termination: Solder
  • Mounting: Surface Mount
  • Fastening: Latch Holder
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Temperature Range: -40°C to 105°C
  • Insulation Material: Resin
  • Insulation Color: Natural
  • Insulation Height: 0.173" (4.40mm)
  • Pitch Mating: 0.049" (1.25mm)
  • Contact Finish Mating: Tin with a thickness of 39.4µin (1.00µm)
  • Contact Finish Post: Tin with a thickness of 39.4µin (1.00µm)
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
