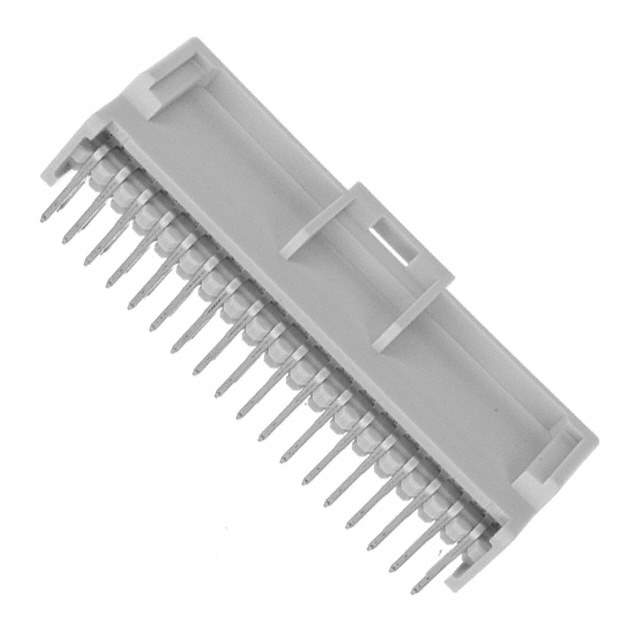

5018763640 Real Image
Same model may have multiple batches, images only for reference.

5018763640

Part No 5018763640
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 36POS 2MM / Connector Header Through Hole, Right Angle 36 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 36
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.327" (8.30mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 501876
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 5018763640-E,WM6093,05018763640-E,0501876-3640-E,501876-3640-E,05018763640,501876-3640,0501876-3640
Standard Package 200
Win Source Part Number 1332977-5018763640
Ultra Librarian 3D Model Ultra Librarian 5018763640 CAD Model

Description

The Molex 1332977-5018763640 is a 36-position header that is commonly used in electronic devices.

  • Mounting Style: Through-hole, right-angle
