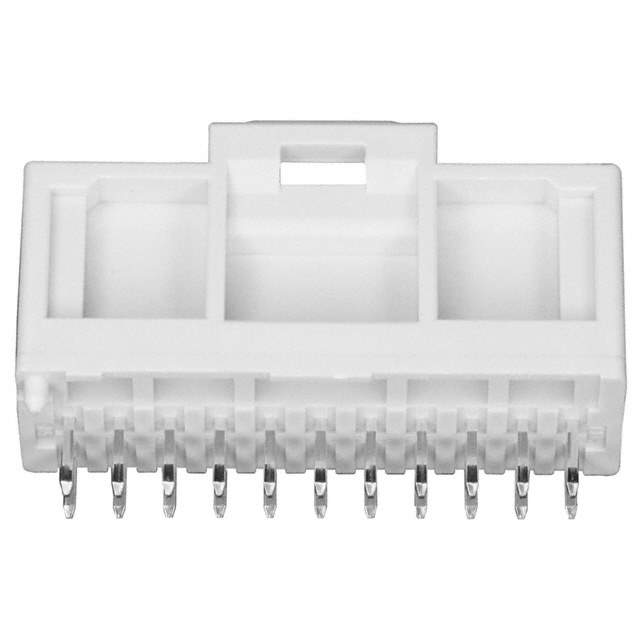

5016452220 Real Image
Same model may have multiple batches, images only for reference.

5016452220

Part No 5016452220
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 22POS 2MM VERT TIN
Datasheet
5016452220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series iGrid 501645
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 22
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.472" (12.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Win Source Part Number 763838-5016452220
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5016452220 CAD Model

Description

The iGrid 501645 electronic component from Molex with Win Source Part Number 763838-5016452220 is a medium-popularity product.

  • Series: iGrid 501645
  • Packaging: Tray
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions: 22
  • Mounting Style: Through hole
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass filled
  • Contact Finish: Tin (mating and post)
  • Supply and demand status: Limited
