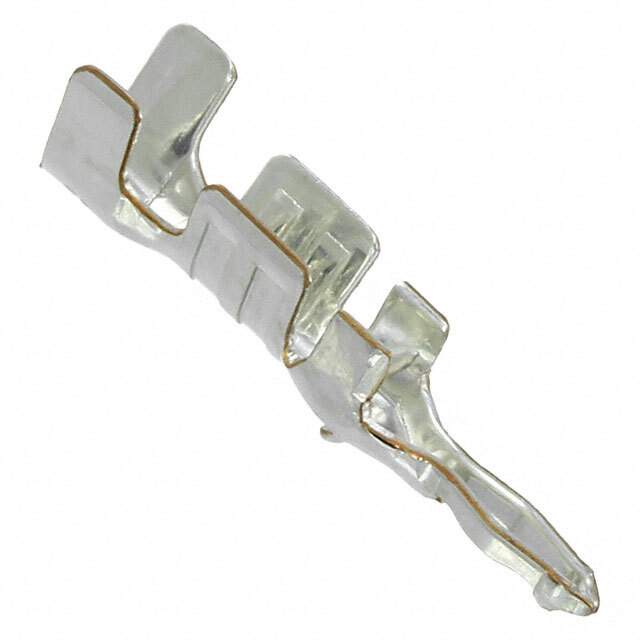

50097-8000 Real Image
Same model may have multiple batches, images only for reference.

50097-8000

Part No 50097-8000
Manufacturer Molex, LLC
Catalog Circular Connectors
Description 2.50mm Pitch Board-In Crimp Terminal Male 50097 Series 20-24 AWG Reel for 51035 Housing
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, Crimp, PCB, Signal
Contact Gender Male
Contact Material Bronze
Contact Plating Tin
Contact Resistance 5 mΩ
Country of Origin KR
Current Rating 1 A
Depth 2.4 mm
Gender Male
Halogen Free Low Halogen
Height 2.5 mm
Length 9.9 mm
Max Current Rating 4 A
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable
Orientation Straight
Packaging Tape & Reel
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 250 V
Wire/Cable Diameter 810 µm
Wire/Cable Gauge 24 AWG
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1203533-50097-8000
Categories Circular Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 50097-8000 CAD Model

Description

The Molex, LLC 1203533-50097-8000 is an electronic component that is used as a connector, crimp, PCB, signal.

  • Packaging: Tape and Reel
  • Gender: Male
  • Length: 9.9mm
  • Height: 2.5mm
  • Shielding: Unshielded
  • Orientation: Straight
  • Contact Material: Bronze
  • Voltage Rating: 250V
  • Current Rating: 1A
  • Contact Plating: Tin
  • Contact Resistance: 5 mΩ
  • Plating: Tin
  • Application: Circular Connectors
  • Halogen: Low Halogen
  • Popularity: Medium
  • Temperature Range: -40 °C to 105 °C
