Same model may have multiple batches, images only for reference.

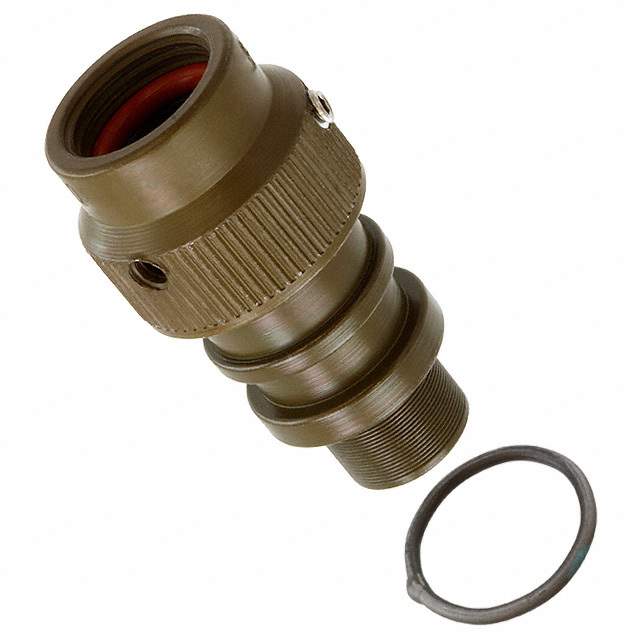

TXR21AB00-0804AI Real Image
Same model may have multiple batches, images only for reference.

TXR21AB00-0804AI

Part No TXR21AB00-0804AI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 8 OLIVE  /  Olive Drab Connector Backshell, Heat Shrink Adapter 7/16-28 UNEF 8
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 0.711" (18.05mm)
Shell Size - Insert 8
Thread Size 7/16-28 UNEF
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Includes 6 pcs - 1 Backshell, 1 Braid, 1 O-Ring, 2 Screws, 1 Tinel Ring
For Use With/Related Products MIL-DTL-26482 Series I Class E, F Connectors
Base Product Number TXR21AB00
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 533821000,533821-000-ND,533821-000
Standard Package 1
Win Source Part Number 1219653-TXR21AB00-0804AI
Ultra Librarian 3D Model Ultra Librarian TXR21AB00-0804AI CAD Model

Description

The TXR21AB00-0804AI backshell and cable clamp is a circular connector component manufactured by TE Connectivity Aerospace, Defense and Marine.

  • Connector Type: MIL-DTL-26482 Series I Class E, F
  • Material: Aluminum Alloy with Cadmium Plating
  • Shell Size: 8
  • Included: 6 Pieces (1 Backshell, 1 Braid, 1 O-Ring, 2 Screws, 1 Tinel Ring)
  • Cable Exit: 180-degree
  • Thread Size: 7/16-28 UNEF
  • Features: Shielded, Tinel Lock
