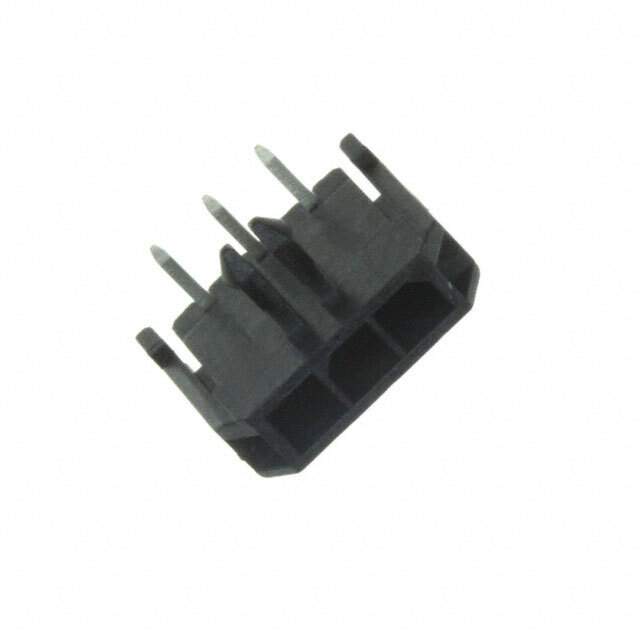

43650-0301

Part No 43650-0301
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 3POS 3MM RT ANG GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.172" (4.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 052763-43650-0301
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 43650-0301 CAD Model

Description

43650-0301 Connector

The 43650-0301 connector offers precision and reliability, meeting the needs of modern electronic applications. Its sturdy construction promises durability even under rigorous conditions.

Features and Benefits:

  • Precision-engineered contacts for reliable signal transmission.
  • Designed for thermal and mechanical stability.
  • Compact size provides versatility in various installations.

Applications/Projects:

  • Automotive electronic systems.
  • Aerospace control units.
  • Embedded systems with high thermal demands.

With the 43650-0301, achieve a balance of performance and cost-efficiency, making it a preferred choice in advanced electronic design.
