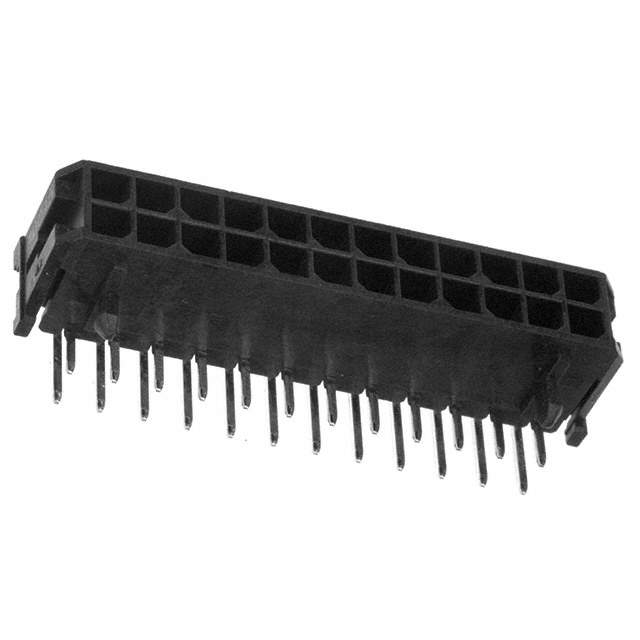

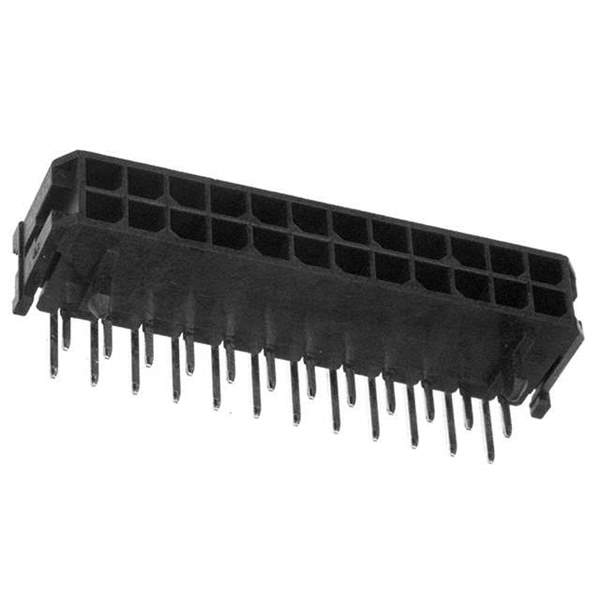

430452400 Real Image
Same model may have multiple batches, images only for reference.

430452400

Part No 430452400
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 24POS 3MM R/A TIN
Datasheet
430452400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Micro-Fit 3.0 43045
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 24
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 763610-430452400
Popularity Medium
Supply and Demand Status Limited
Family Name 43045
Introduction Date July 08, 2010
ECCN EAR99
Country of Origin China, Hong Kong, Japan, Mexico, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 430452400 CAD Model

Description

The Molex Micro-Fit 3.0 43045 is a 24-position header connector designed for use in a variety of applications, including general purpose, medical, military, and telecommunications.

  • Fastening: Board Lock, Locking Ramp
  • Mounting: Through Hole, Right Angle
  • Contact Material: Brass
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Shrouding: 4 Walls
  • Pitch-Mating: 0.118 inches (3.00mm)
