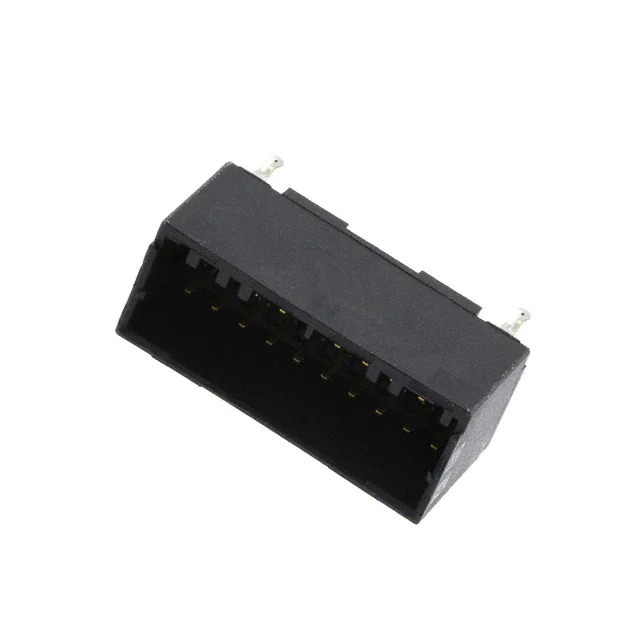

1-1827875-0 TE Connectivity
Same model may have multiple batches, images only for reference.

1-1827875-0

Part No 1-1827875-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.5MM / Connector Header Through Hole 20 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-1200
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.130" (3.30mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length -
Insulation Height 0.490" (12.44mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose, Industrial
Base Product Number 1827875
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362607-1-1827875-0
Ultra Librarian 3D Model Ultra Librarian 1-1827875-0 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-1200 series is a board-to-board or cable header connector.

  • Series: Dynamic D-1200
  • Pitch: 2.50mm
  • Number of Positions: 20
  • Number of Rows: 2
  • Design: Shrouded with 4 Walls
  • Current Rating: 5A
  • Voltage Rating: 250V
  • Contact Finish (Mating): Gold (15.0μin)
  • Contact Finish (Post): Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic, Polyester, Glass Filled
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Contact Length: 0.120" (3.05mm)
  • Insulation Height: 0.490" (12.44mm)
  • Application: General Purpose and Industrial
  • Manufacturer: TE Connectivity AMP Connectors
