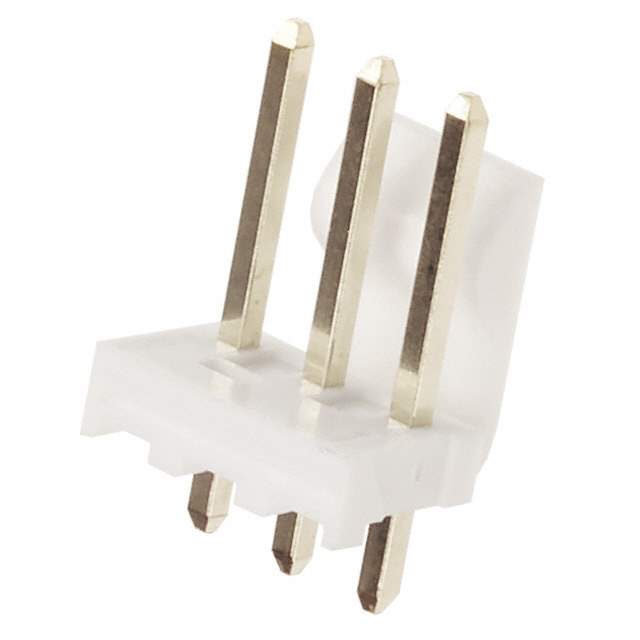

Part No 26604030
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series KK396, 41791
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.450" (11.43mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.720" (18.29mm)
Insulation Height 0.446" (11.33mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 002660
Other Names 26604030-P,026604030-P,WM4621R,026604030,26-60-4030-P,41791-0003,26604030,0026-60-4030,26-60-4030,WM4621,0026-60-4030-P
Standard Package 7,200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293224-26604030
Ultra Librarian 3D Model Ultra Librarian 26604030 CAD Model

Description

The KK396, 41791 series male pin header is designed for use in a wide range of applications such as automotive, general purpose, industrial, medical, and telecommunications.

  • Series: KK396, 41791
  • Applications: Automotive, general purpose, industrial, medical, and telecommunications
  • Positions: 3
  • Mounting: Through Hole
  • Package: Bulk
  • Contact Material: Not Specified
  • Voltage Rating: Not Specified
  • Current Rating: Not Specified
  • Insulation Material: Polyester, glass filled
  • Shrouding: 1 Wall
  • Pitch-Mating: 0.156" (3.96mm)
  • Contact Finish-Mating: Tin
  • Contact Finish Thickness-Mating: 60.0μin (1.52μm)
  • Contact Finish-Post: Tin
  • Contact Finish Thickness-Post: 60.0μin (1.52μm)
  • Insulation Color: Natural
  • Contact Shape: Square
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Molex
  • Other Names: 26604030-P, 026604030-P, WM4621R, 026604030, 26-60-4030-P, 41791-0003, 26604030, 0026-60-4030, 26-60-4030, WM4621
