Same model may have multiple batches, images only for reference.

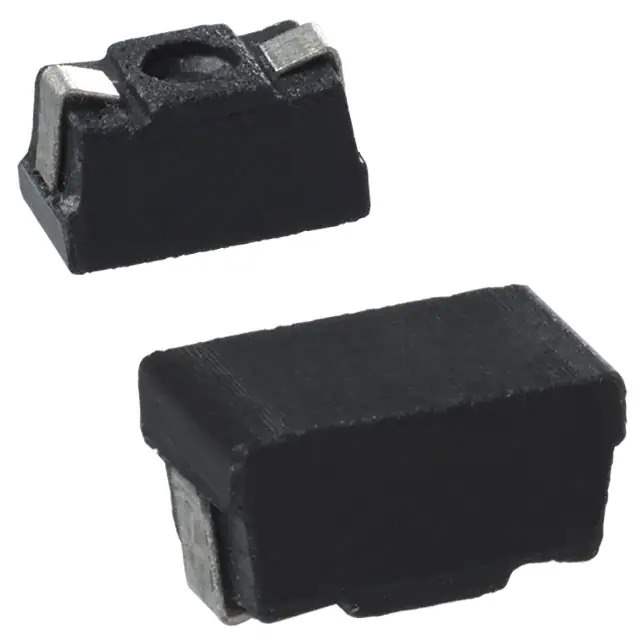

RW1S0BAR075JET Real Image
Same model may have multiple batches, images only for reference.

RW1S0BAR075JET

Part No RW1S0BAR075JET
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description RES 0.075 OHM 5% 1W J LEAD / 75 mOhms ±5% 1W Chip Resistor 2512 J-Lead Current Sense Wirewound
Datasheet
RW1S0BAR075JET Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Ohmite
Series RW
Package Tape & Reel
Product Status Active
Resistance 75 mOhms
Tolerance ±5%
Power (Watts) 1W
Composition Wirewound
Features Current Sense
Temperature Range - Operating -55°C ~ 150°C
Package / Case 2512 J-Lead
Supplier Device Package SMD J-Lead, Pedestal
Size / Dimension 0.246" L x 0.136" W (6.25mm x 3.45mm)
Height - Seated (Max) 0.141" (3.58mm)
Number of Terminations 2
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 932565-RW1S0BAR075JET
Ultra Librarian 3D Model Ultra Librarian RW1S0BAR075JET CAD Model

Description

The 932565-RW1S0BAR075JET is a surface mount chip resistor from Ohmite.

  • Series: RW
  • Application: Current Sensing
  • Package: Tape and Reel
  • Size: 0.246" L x 0.136" W (6.25mm x 3.45mm)
  • Height: 0.141" (3.58mm)
  • Power Rating: 1W
  • Resistance Value: 75 mOhms
  • Tolerance: ±5%
  • Resistor Element Material: Wirewound
  • Temperature Range: -55°C to 150°C
