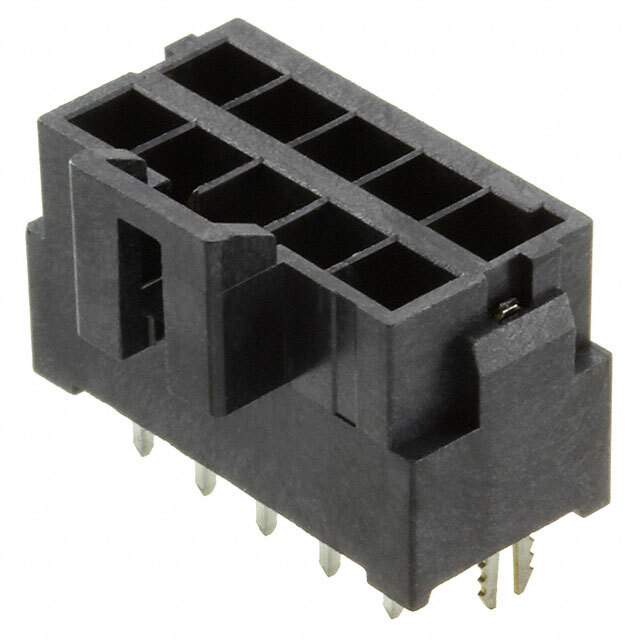

1722991110

Get a Quote

Part No	1722991110
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 3.5MM / Connector Header Through Hole 10 position 0.138" (3.50mm)
Datasheet	1722991110 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Ultra-Fit 172299
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.138" (3.50mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.181" (4.60mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.465" (11.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Solder Retention
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	400V
Mated Stacking Heights	26.99mm
Contact Finish Thickness - Post	60.0µin (1.52µm)
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number	172299
Standard Package	75
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350033-1722991110
Ultra Librarian 3D Model	Ultra Librarian 1722991110 CAD Model

Description

The Ultra-Fit 172299 series header connector is designed for use in rectangular connectors for male pins.

Positions: 10
Rows: 2
Termination: Solder
Material: Copper Alloy
Voltage Rating: 400V
Design: Shrouded 4 Wall
Fastening Type: Latch Holder
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Finish Thickness: 60.0μin (Mating and Post)
Insulation Height: 0.465 inches
Insulation Color: Black
Temperature Range: -40°C to 105°C
