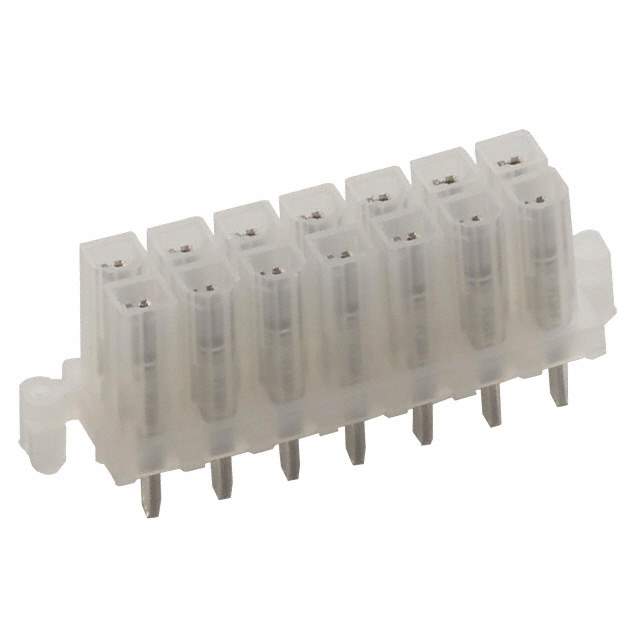

Part No 0015247140
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 14POS 0.165 TIN PCB / 14 Position Receptacle Connector 0.165" (4.20mm) Through Hole Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer Molex
Packaging Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 14
Number of Positions Loaded All
Pitch - Mating 0.165" (4.20mm)
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Insulation Color Natural
Insulation Height 0.446" (11.33mm)
Contact Length - Post 0.138" (3.50mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Contact Finish - Post Tin
Features Blind Mating, Board Lock
Voltage Rating 600V
Applications General Purpose, Industrial, Medical, Telecommunications
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Contact Material Brass
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 001524
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 15-24-7140-P,15247140,0015-24-7140-E,WM17603,15-24-7140-TR130,15247140-E,0015247140-E,15-24-7140-E,WM17603-NDR,15-24-7140,42385-14A1,0015-24-7140
Standard Package 1,200
Win Source Part Number 1333057-0015247140
Ultra Librarian 3D Model Ultra Librarian 0015247140 CAD Model

Description

The Molex 1333057-0015247140 is a rectangular connector manufactured by Molex.

  • Packaging: Tray
  • Blind Mating: Yes
  • Board Lock: Yes
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Number of Rows: Two
  • Pitch-Mating: 0.165 inches
  • Contact Finish Mating: Tin
  • Contact Finish Post: Tin
  • Contact Finish Thickness: 100.0μin (2.54μm)
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Temperature Range: -40°C to 105°C
  • RoHS3 Compliant: Yes
