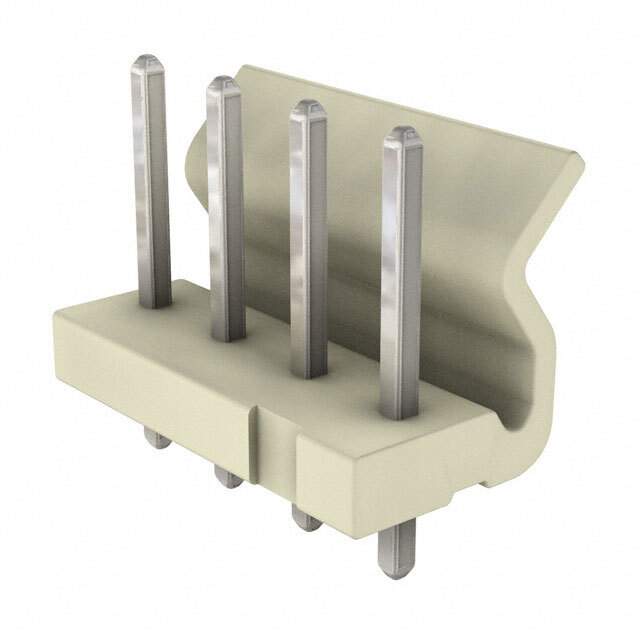

Same model may have multiple batches, images only for reference.

0010321041

Get a Quote

Part No	0010321041
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 5.08MM / Connector Header Through Hole 4 position 0.200" (5.08mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.200" (5.08mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.419" (10.65mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	0.687" (17.45mm)
Insulation Height	0.508" (12.90mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Insulation Color	Natural
Contact Finish Thickness - Post	200.0µin (5.08µm)
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number	001032
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	10-32-1041,0010-32-1041,10321041,WM9128,5281-04A,0010321041-ND,10-32-1041-ND
Standard Package	500
Win Source Part Number	1332405-0010321041
Ultra Librarian 3D Model	Ultra Librarian 0010321041 CAD Model

Description

The 1332405-0010321041 is a male header connector manufactured by Molex.

Positions: 4
Applications: Automotive, General Purpose, Industrial, Medical, Telecommunications
Mounting Style: Through-Hole
Insulation Material: Polyamide (PA66) and Nylon 6/6
Design: Shrouded
Fastening Type: Friction Lock
Contact Material: Brass
Contact Finish: Tin
Supply and Demand Status: Unknown
