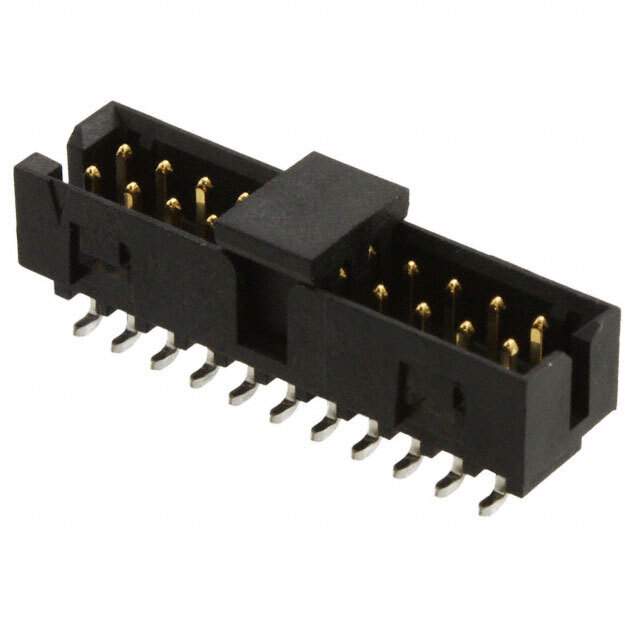

Same model may have multiple batches, images only for reference.

0878326022

Get a Quote

Part No	0878326022
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 22POS 2MM / Connector Header Surface Mount 22 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	Milli-Grid 87832
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	22
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.252" (6.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Features	Board Guide, Keying Slot, Pick and Place
Temperature Range - Operating	-55°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Telecommunications
Base Product Number	087832
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	500 pcs
Win Source Part Number	1381215-0878326022
Ultra Librarian 3D Model	Ultra Librarian 0878326022 CAD Model

Description

The Milli-Grid 87832 is a rectangular connector header with male pins.

Positions: 22
Features: Board Guide, Keying Slot, Pick and Place
Applications: Board-to-Board or Cable
Pitch: 0.079 inches (2.00mm)
Contact Finish: Gold with 15.0μin (0.38μm) Thickness
Termination: Solder
Shrouding: Shrouded - 4 Wall
Temperature Range: -55°C to 105°C
ECCN: EAR99
REACH: Unaffected
HTSUS Code: 8536.69.4040
Manufacturer: Molex, LLC
