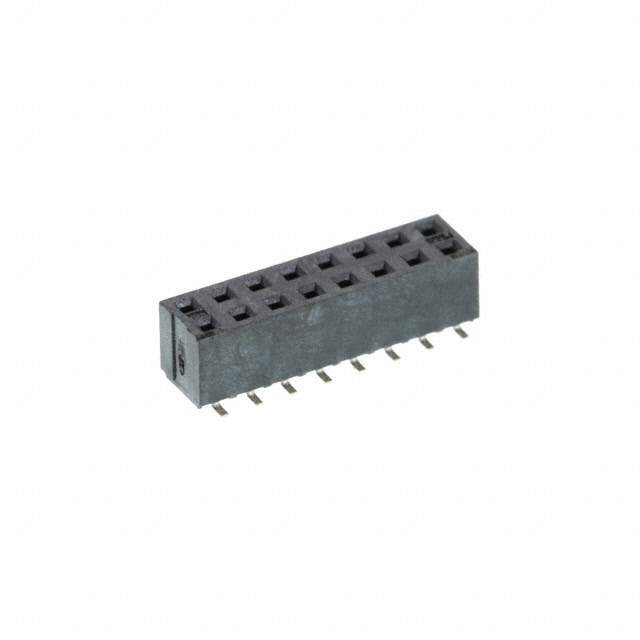

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 12 Weeks
Features 16 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Manufacturer Molex, LLC
Series Milli-Grid 79109
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Family Name 79109
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 79109-1007-TB38, 079109-1007, 79109-1007, 791091007, 79109-1007-TB32, 079109-1007-E, WM18703, 0791091007-E, 79109-1007-E, 791091007-E
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908446-0791091007
Ultra Librarian 3D Model Ultra Librarian 0791091007 CAD Model

Description

The 908446-0791091007 is a 16 position receptacle connector manufactured by Molex, LLC.

  • Number of Positions: 16
  • Connector Type: Receptacle
  • Manufacturer: Molex, LLC
  • Popularity: High
  • Supply and Demand Status: Balanced
  • Series: Milli-Grid 79109
  • Mounting Style: Surface Mount
  • Contact Finish: Gold
  • Packaging: Tube
  • Estimated Production Lead Time: 12 weeks
  • Manufacturer Homepage: www.molex.com
