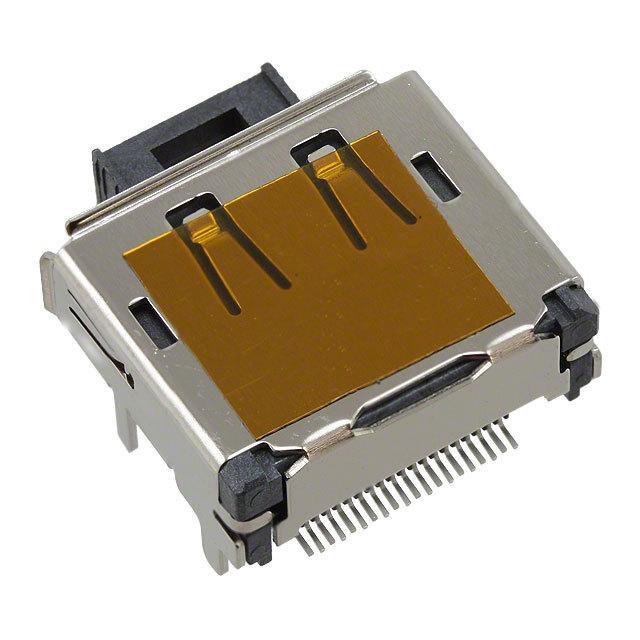

0472720024

Name: 0472720024
Brand: Molex, LLC
SKU: 537991
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0472720024
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	0.50mm (.020") Pitch DisplayPort* Male Receptacle, Right Angle, SMT, 0.76μm (30μ")Gold (Au) Plating, 20 Circuits, with Cover, Latch Holes, Mylar, Peg, Solder Tab of Shell,without Flange \| CONN RCPT DISPLAYPORT 20P SMD RA
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Connector Type	DisplayPort
Number of Contacts	20
Gender	Receptacle
Mounting Style	SMT, Right Angle; Through Hole
Mounting Feature	Horizontal
Termination	Solder
Features	Board Guide, Cover, Latch Lock
Temperature Range - Operating	-20°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	0.5A
Voltage - Rated	40VAC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1120679-0472720024
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 0472720024 CAD Model

Alternative Products

Description

The Molex 1120679-0472720024 is a 20-position receptacle connector with a horizontal mounting feature.

Mounting Style: Right-angle surface-mounting and through-hole mounting
Application: DisplayPort
Shielded: Yes
Voltage Rating: 40VAC
Material Flammability Rating: UL94 V-0
Contact Finish: Gold
Manufacturer Pack Quantity: 1
Current Rating (Amps): 0.5A
Operating Temperature Range: -20°C to 85°C
Mating Cycles: 10000
