Same model may have multiple batches, images only for reference.

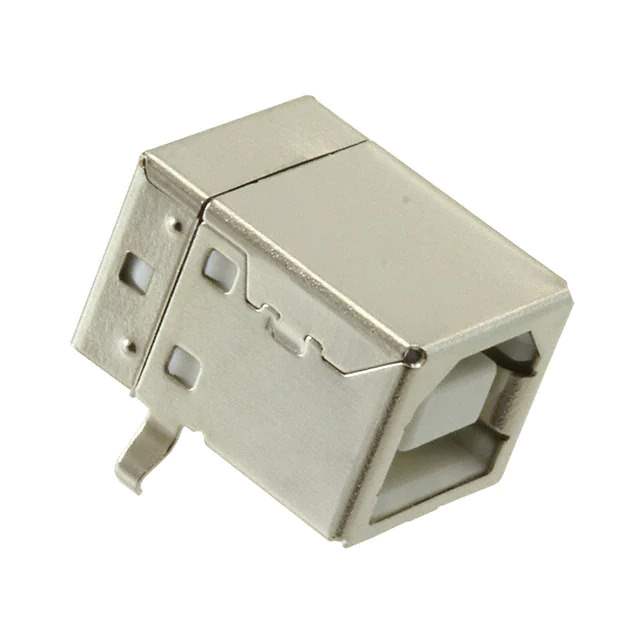

USB-B-S-F-W-TH Real Image
Same model may have multiple batches, images only for reference.

USB-B-S-F-W-TH

Part No USB-B-S-F-W-TH
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEB 4POS R/A
Datasheet
USB-B-S-F-W-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Samtec Inc.
Series USB-B
Package Bulk
Product Status Active
Connector Type USB-B (USB TYPE-B)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Temperature Range - Operating -50°C ~ 85°C
Number of Ports 1
Voltage - Rated 30VAC
Mating Cycles 1500
Contact Finish Gold
Shell/Shielding Material Steel
Material Flammability Rating UL94 V-0
Insulation Color White
Base Product Number USB-B
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 849204-USB-B-S-F-W-TH
Ultra Librarian 3D Model Ultra Librarian USB-B-S-F-W-TH CAD Model

Description

The USB-B series from Samtec Inc. provides a reliable and versatile solution for USB connectivity.

  • Connector Type: USB-B (USB TYPE-B)
  • Termination: solder
  • Contact Finish: gold
  • Mounting Type: horizontal
  • Voltage Rating: 30VAC
  • Application: USB 2.0
  • Mating Cycle: 1500
  • Material: steel
  • Flammability Rating: UL94 V-0
  • Package: bulk
  • Contacts: 4
  • Insulation Color: white
  • REACH: unaffected
  • Product Status: active
