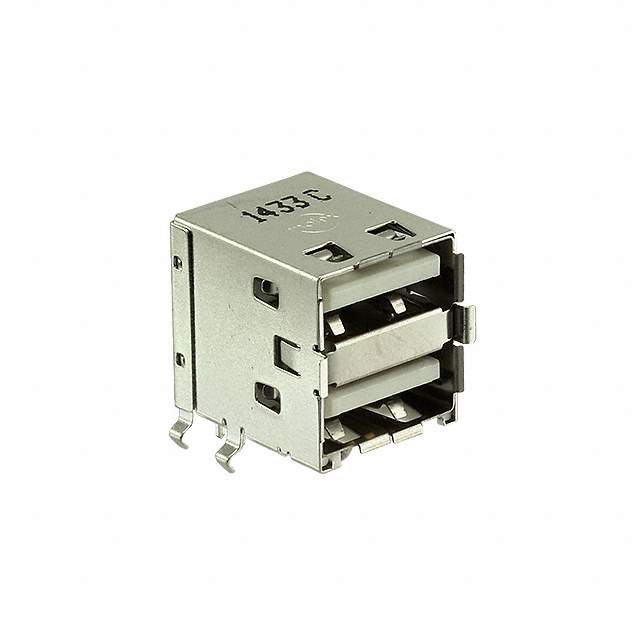

67298-4091 Real Image
Same model may have multiple batches, images only for reference.

67298-4091

Part No 67298-4091
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description Conn USB 2.0 Type A RCP 8 POS 2mm/2.5mm Solder RA Thru-Hole 8 Terminal 2 Port Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle, USB
Contact Plating Gold
Country of Origin US
Current Rating 1.5 A
Gender Female
Lead Pitch 2.5 mm
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
Number of Circuits 8
Number of Ports 2
Number of Positions 8
Number of Rows 2
Orientation Right Angle
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Through Hole
Voltage Rating (DC) 30 V
Win Source Part Number 1204387-67298-4091
Categories USB,DVI,HDMI Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 67298-4091 CAD Model

Description

The 1204387-67298-4091 is a USB receptacle connector in through hole termination style from Molex, LLC.

  • Positions: 8
  • Circuits: 8
  • Current Rating: 1.5A
  • Gender: female
  • Orientation: right angle
  • Contact Plating: gold
  • Voltage Rating (DC): 30V
  • RoHS: compliant
  • Popularity: medium
  • Supply and Demand Status: limited
