Same model may have multiple batches, images only for reference.

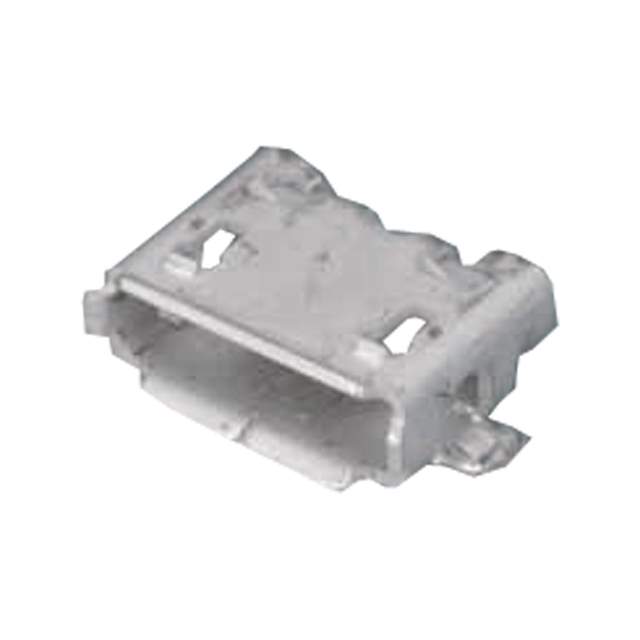

ZX62D-AB-5P8(30) Real Image
Same model may have multiple batches, images only for reference.

ZX62D-AB-5P8(30)

Part No ZX62D-AB-5P8(30)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO AB SMD RA / USB - micro AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
Datasheet
ZX62D-AB-5P8(30) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Hirose Electric Co Ltd
Series ZX
Package Tape & Reel
Connector Type USB - micro AB
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Bottom Mount, Horizontal
Termination Solder
Features Pick and Place, Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Gray
Base Product Number ZX62
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 242-0027-5-30,H125271TR,H125271CT,H125271DKR
Standard Package 2,000
Win Source Part Number 1166665-ZX62D-AB-5P8(30)
Ultra Librarian 3D Model Ultra Librarian ZX62D-AB-5P8(30) CAD Model

Description

The Hirose Electric Co Ltd ZX62D-AB-5P8(30) is a USB micro AB connector designed for use in electronic devices.

  • Series: ZX
  • Package: Tape and Reel
  • Application: High performance and reliability applications
  • Win Source Part Number: 1166665-ZX62D-AB-5P8(30)
