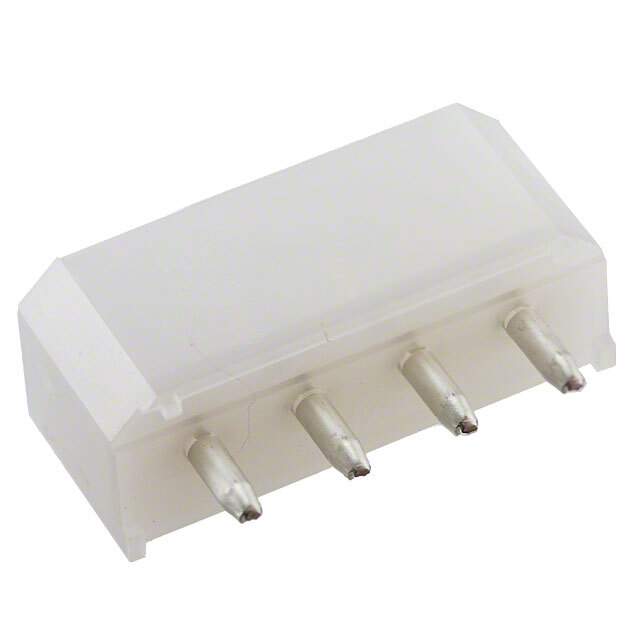

0015244449 Real Image
Same model may have multiple batches, images only for reference.

0015244449

Part No 0015244449
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 5.08MM / Connector Header Through Hole 4 position 0.200" (5.08mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series 8981
Package Bag
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.171" (4.34mm)
Contact Length - Post 0.140" (3.56mm)
Insulation Height 0.400" (10.16mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 001524
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905361-0015244449
Ultra Librarian 3D Model Ultra Librarian 0015244449 CAD Model

Description

The 905361-0015244449 is a 4-position male pin header connector from Molex.

  • Positions: 4
  • Termination: Solder
  • Fastening Type: Friction lock
  • Contact Material: Phosphor bronze
  • Insulation Material: Polyamide (PA66) and nylon 6/6
  • Pitch: 0.200" (5.08mm)
  • Contact Finish: Tin
  • Mounting: Through-hole
  • Design: Shrouded with 4 walls
  • Current Rating: Unspecified
  • Product Status: Active
