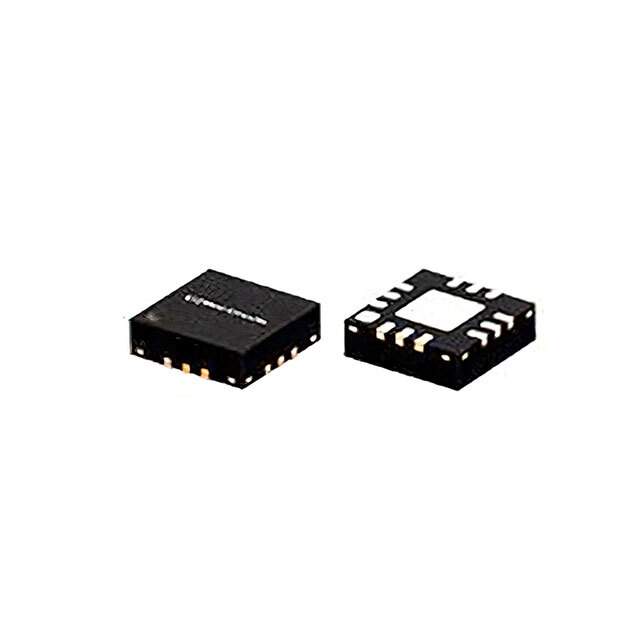

LHA-23LN+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Frequency 30MHz ~ 2GHz
P1dB 24.2dBm
Gain 19.6dB
Noise Figure 1.5dB
RF Type CATV, Cellular
Voltage - Supply 3V, 5V
Current - Supply 146mA
Test Frequency 500MHz
Mounting SMD (SMT)
Package / Case 12-VQFN Exposed Pad
Supplier Device Package DQ1225
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Other Names 3157-LHA-23LN+CT,3157-LHA-23LN+DKR,3157-LHA-23LN+TR
Standard Package 2,000
Win Source Part Number 1069687-LHA-23LN+
Ultra Librarian 3D Model Ultra Librarian LHA-23LN+ CAD Model

Description

The LHA-23LN+ is an RF amplifier manufactured by Mini-Circuits.

  • Mounting: SMD (SMT) type mounting component
  • Test Frequency: 500MHz
  • Frequency Range: 30MHz to 2GHz
  • Gain: 19.6dB
  • Noise Figure: 1.5dB
  • Current Supply: 146mA
  • P1dB: 24.2dBm
  • Application: Can be used in CATV, Cellular and other similar electronic products.
