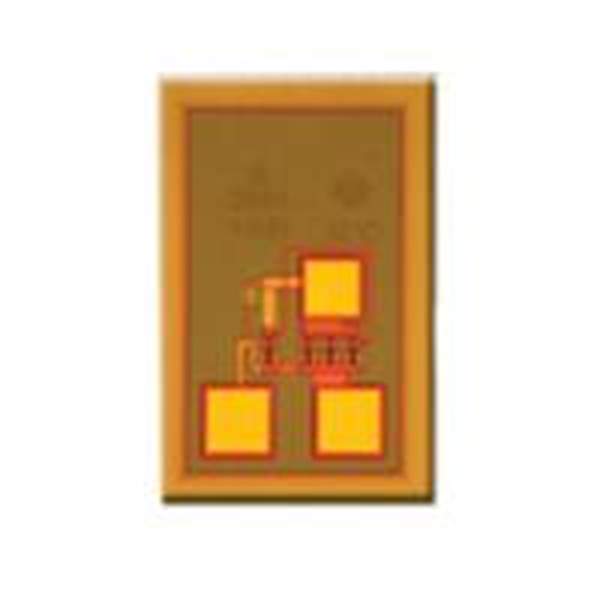

Product Overview: HMC397 from Analog Devices Inc.

The HMC397 is a state-of-the-art microwave voltage-controlled oscillator (VCO) designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This high-quality VCO operates in the frequency range of 7.9 GHz to 8.4 GHz, making it an ideal component for a wide range of applications in the RF and microwave domains.

Key Features

• Frequency Range: The HMC397 offers a continuous frequency range of 7.9 to 8.4 GHz, providing flexibility for various design requirements.
• Output Power: It delivers a consistent output power level, ensuring reliable performance across the entire operating frequency band.
• Phase Noise Performance: With excellent phase noise characteristics, the HMC397 is suitable for applications requiring high signal purity.
• Tuning Voltage: The VCO can be tuned with a voltage range of 0.5V to 18V, giving designers control over frequency modulation and selection.
• Package: It is available in a compact package, which is essential for space-constrained applications and high-density circuit designs.

Applications

The versatility of the HMC397 makes it a perfect fit for numerous applications, including:

• Point-to-Point and Point-to-Multipoint Radios
• Test and Measurement Equipment
• Satellite Communications Systems
• Industrial and Medical Equipment

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and the HMC397 is no exception. It is fabricated using a robust SiGe (silicon-germanium) biCMOS process, which ensures high reliability and performance consistency. Each unit undergoes rigorous testing and quality control measures to meet the highest industry standards.

Support and Resources

Customers can access comprehensive technical support and resources for the HMC397 on the Analog Devices Inc. website. This includes detailed datasheets, application notes, and design tools to assist engineers in integrating this VCO into their projects effectively.
