Products specifications Report Issue?

Product Status Active
Frequency 0Hz ~ 7GHz
P1dB 4.3dBm
Gain 10.8dB
Noise Figure 3.1dB
RF Type Cellular, PCS
Voltage - Supply 3.6V
Current - Supply 16mA
Test Frequency 10MHz
Grade -
Mounting Type Surface Mount
Package / Case 6-TDFN Exposed Pad
Ultra Librarian 3D Model Ultra Librarian LEE2-6+ CAD Model

Description

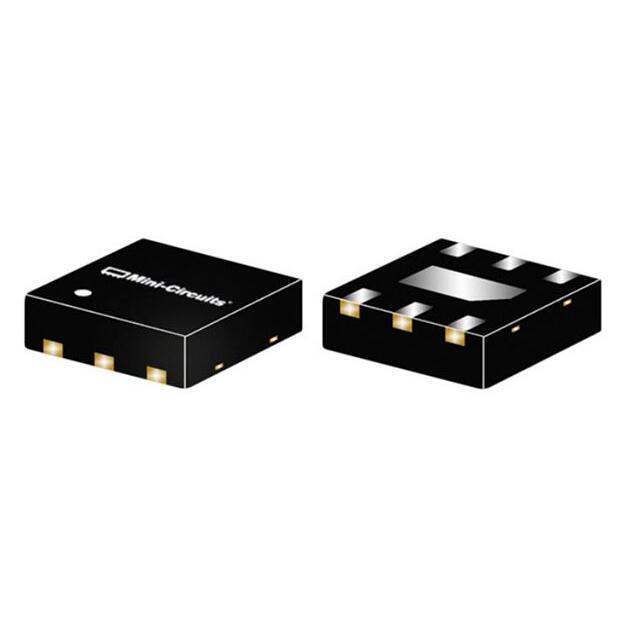

LEE2-6+ (RoHS compliant) is wideband current driven amplifier fabricated using HBT technology. In addition, the LEE2-6+ has good input and output return loss over a broad frequency range without the need for external matching components. Lead finish is Tin Silver over Nickel. It has repeatable performance from lot to lot and is enclosed in a 2 mm x 2 mm x 0.89 mm 6-lead MCLP package for very good electrical performance.
