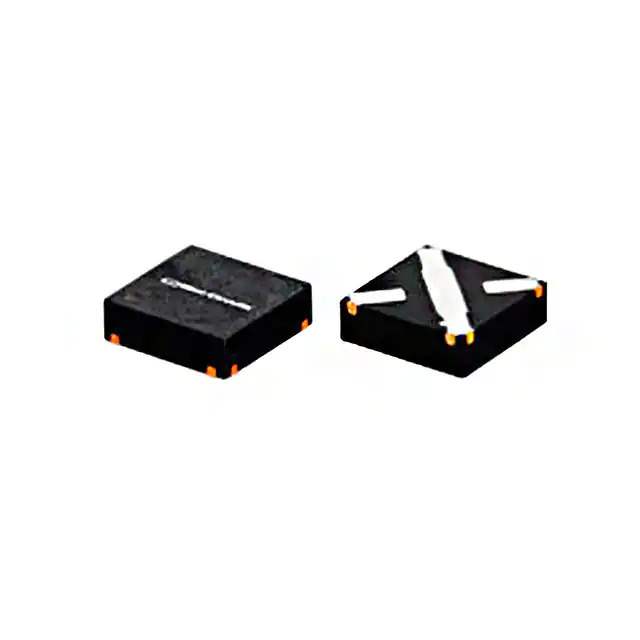

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 0Hz ~ 5GHz
P1dB 17.3dBm
Gain 7.6dB
Noise Figure 4.5dB
RF Type Cellular, PCS
Voltage - Supply 4.3V ~ 5.2V
Current - Supply 65mA
Test Frequency 2GHz
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Supplier Device Package FG873
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 714824-LEE-59+
Ultra Librarian 3D Model Ultra Librarian LEE-59+ CAD Model

Description

The Mini-Circuits 714824-LEE-59+ is an RF amplifier.

  • Frequency Range: 0Hz to 5GHz
  • Gain: 7.6dB
  • Noise Figure: 4.5dB
  • Current Supply: 65mA
  • P1dB: 17.3dBm
  • RF Types: Cellular and PCS
  • Voltage Supply Range: 4.3V to 5.2V
  • Mounting: Surface Mount
  • Package: 4-SMD, No Lead
  • Supplier Device Package: FG873
