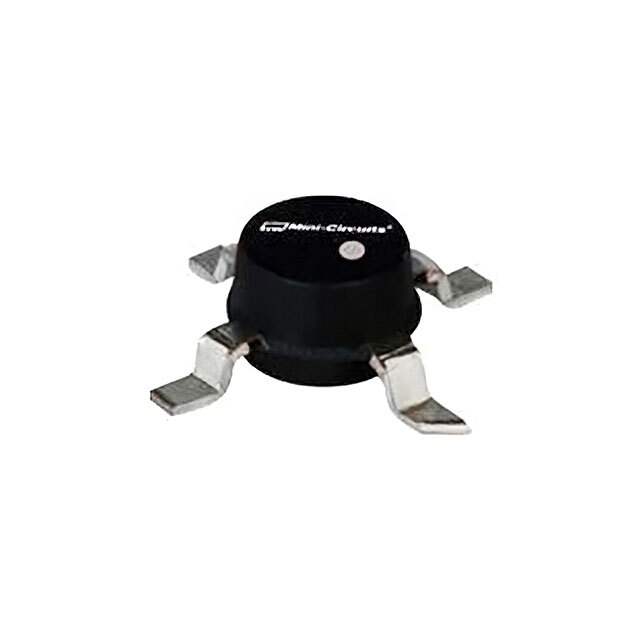

ERA-4SM+ Real Image
Same model may have multiple batches, images only for reference.

ERA-4SM+

Part No ERA-4SM+
Manufacturer Mini-Circuits
Catalog RF Amplifiers
Description IC RF AMP CELLULAR 0HZ-4GHZ 4SMD
Datasheet
ERA-4SM+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 0Hz ~ 4GHz
P1dB 17.5dBm
Gain 12.2dB
Noise Figure 4.5dB
RF Type Cellular, CATV, DBS, PCS, WLAN
Voltage - Supply 4.3V ~ 4.9V
Current - Supply 65mA
Test Frequency 100MHz
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 123626-ERA-4SM+
Ultra Librarian 3D Model Ultra Librarian ERA-4SM+ CAD Model

Description

ERA-4SM+ Enhanced Amplifier Module Description

An enhancement over the classic ERA-4SM, the ERA-4SM+ offers improved efficiency and extended frequency range. It is designed for advanced RF applications where superior gain and reduced distortion are required.

  • Features and Benefits<ul>
  • Extended frequency range for wider application support.
  • Optimized for minimal distortion and high gain.
  • Enhanced thermal stability for reliable operation.
  • Applications<ul>
  • Advanced RF communication equipment
  • Broadcast transmitters
  • Wireless communication devices
  • High-frequency signal amplification

    • The ERA-4SM+ offers a superior solution for applications demanding higher specifications in RF signal amplification.
