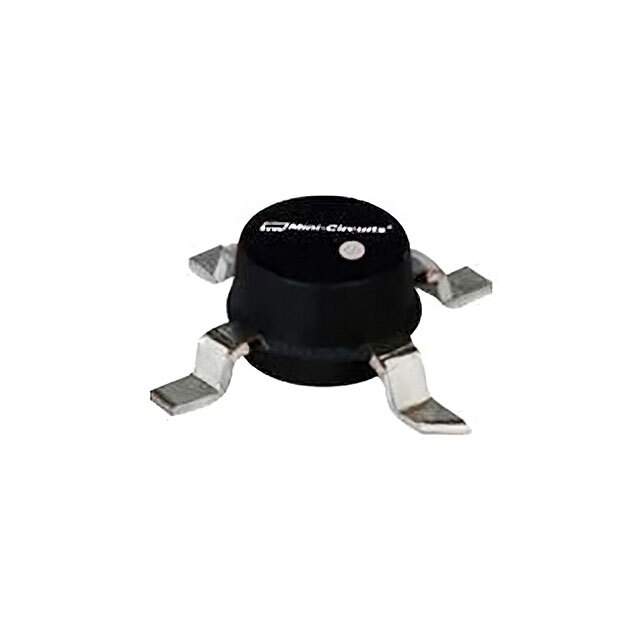

The ERA-21SM is a surface-mount MMIC (Monolithic Microwave Integrated Circuit) amplifier from Mini-Circuits. It's designed for broadband applications, offering high gain and low noise figure.
Applications:
- Cellular Infrastructure: Used in base stations and repeaters.
- Satellite Communication: Employed in LNBs (Low Noise Block downconverters).
- Cable TV (CATV): Used in amplifiers and distribution networks.
- Wi-Fi and Wireless LAN: Found in access points and client devices.
- General Purpose Amplification: Can be used in various RF and microwave circuits.
Features:
- Broadband Operation: Operates over a wide frequency range.
- High Gain: Provides significant signal amplification.
- Low Noise Figure: Minimizes noise added to the signal.
- Surface Mount Package: Facilitates automated assembly.
- Unconditionally Stable: Ensures stable operation under various load conditions.
Benefits:
- Improved Signal Strength: High gain boosts weak signals.
- Reduced Noise: Low noise figure minimizes signal degradation.
- Simplified Design: Easy to integrate into various RF circuits.
- Compact Size: Surface mount package saves board space.
- Reliable Performance: Unconditional stability ensures consistent operation.
Additional Details:
The ERA-21SM typically offers a gain of around 20 dB and a noise figure of approximately 3 dB. Its operating frequency range spans from a few MHz to several GHz (specific range varies with model). It requires a DC bias voltage (typically 5V) and a small number of external components for optimal performance. This amplifier is often used as a first-stage amplifier in receiver chains or as a general-purpose gain block in various RF and microwave systems. Its small size and high performance make it a popular choice for many applications.
