The SY100S314FC from Microchip Technology is a state-of-the-art high-speed quad 2:1 multiplexer designed for the most demanding digital systems. This device is part of the SY100S314 family, renowned for its exceptional performance in signal processing and routing applications.
Key Features
- High-Speed Operation: The SY100S314FC is optimized for high-speed signal processing, providing a seamless and efficient data flow in complex digital systems.
- Quad 2:1 Multiplexer: This IC features four independent 2:1 multiplexers, making it highly versatile for various applications requiring multiple data selection options.
- Differential PECL Outputs: With differential PECL (Positive Emitter-Coupled Logic) outputs, the SY100S314FC ensures reduced noise and improved signal integrity, which is critical in high-speed environments.
- Extended Temperature Range: It operates reliably across an extended temperature range, making it suitable for industrial and other harsh environments.
- Power Supply: The device is designed to work with a 5V power supply, providing compatibility with standard power systems.
Applications
The SY100S314FC is ideal for a wide array of applications that require high-speed data routing, including:
- Telecommunications Equipment
- Data Communication Systems
- High-Speed Computer Servers
- Automated Test Equipment
- Avionics and Military Systems
Technical Specifications
Parameter
Value
Configuration
Quad 2:1
Output Type
PECL
Supply Voltage
5V
Operating Temperature
-40°C to +85°C

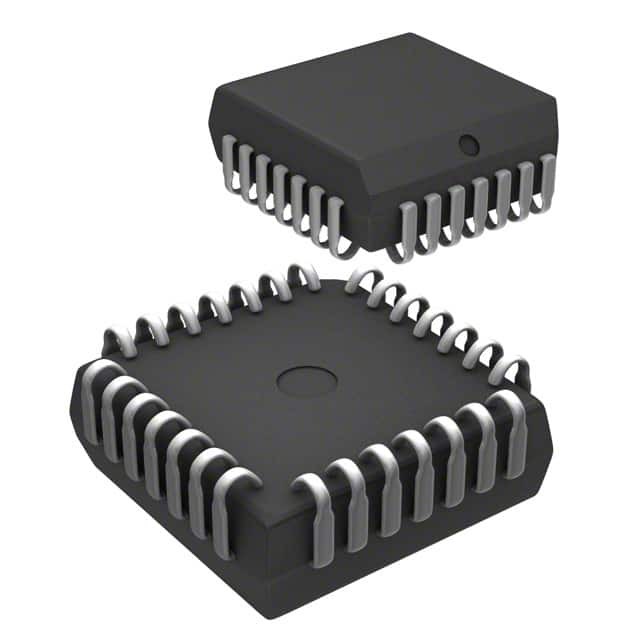

The SY100S314FC is available in a compact FC package, providing a space-efficient solution for PCB designs. Microchip Technology's commitment to quality ensures that this multiplexer will meet the stringent requirements of high-speed digital systems, offering both reliability and performance.
