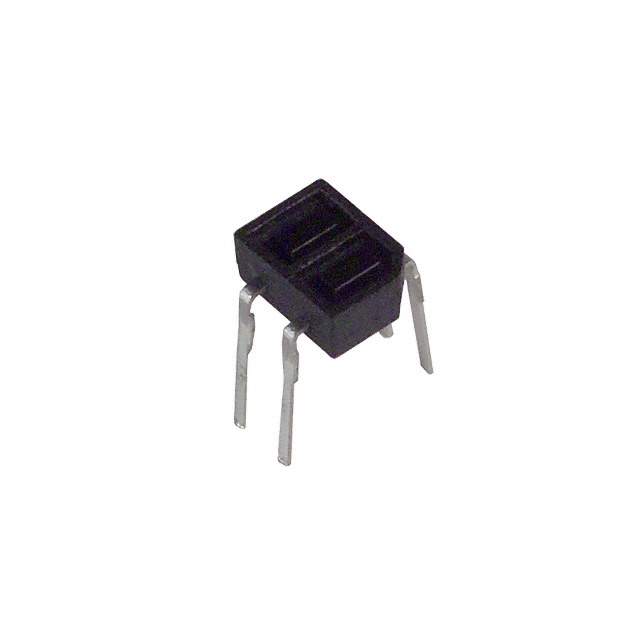

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Part Status Obsolete (End Of Life)
Sensing Distance 0.039" (1mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Maximum) 30V
Current - Collector (Ic) (Maximum) 20mA
Current - DC Forward (If) (Maximum) 50mA
Output Type Phototransistor
Response Time 35μs, 25μs
Mounting Style Through Hole
Manufacturer Package PCB Mount
Temperature Range - Operating -25°C ~ 85°C
Manufacturer Pack Quantity 50
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810582-EE-SY124
Ultra Librarian 3D Model Ultra Librarian EE-SY124 CAD Model

Description

The Omron Electronics Inc-EMC Div reflective phototransistor is an obsolete (End Of Life) electronic component.

  • Mounting Style: Through-Hole
  • Sensing Distance: 0.039 inches (1mm)
  • Response Time: 35μs, 25μs
  • Sensing Method: Reflective
  • Current - DC Forward (If) (Maximum): 50mA
  • Current - Collector (Ic) (Maximum): 20mA
  • Voltage - Collector Emitter Breakdown (Maximum): 30V
  • Operating Temperature: -25°C to 85°C
  • Manufacturer Package: PCB mount
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 50
  • MSL Level: Not Applicable
