Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Not For New Designs
Core Processor PIC
Part Core Size 8-Bit
Speed(Frequency) 4MHz
Number of I/O 20
Program Memory Size 768B (512 x 12)
Program Memory Type OTP
Data RAM Size 24 x 8
Supply Voltage - Operating 3 V to 6.25 V
Oscillator Type External
Temperature Range - Operating 0°C to 70°C (TA)
Case / Package 28-PDIP
Win Source Part Number 061703-PIC16C55-RC/P
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PIC16C55-RC/P CAD Model

Description

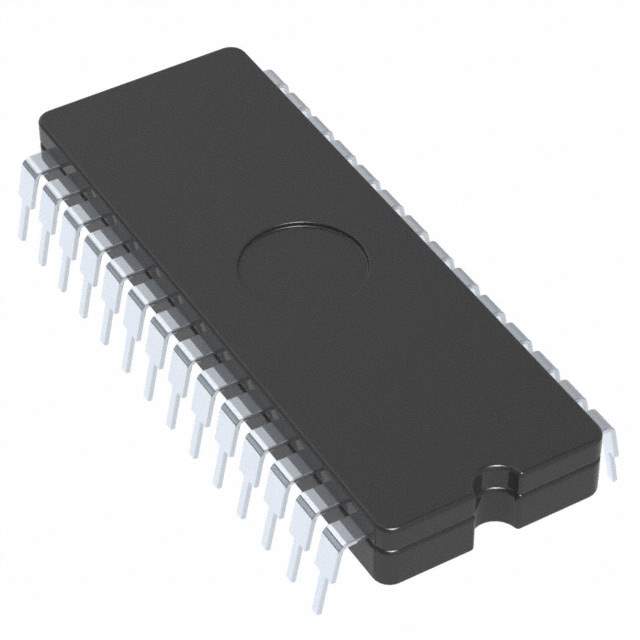

Microchip Technology PIC16C55-RC/P Microcontroller

The PIC16C55-RC/P from Microchip Technology is a high-performance, CMOS fully-static 8-bit microcontroller packed with a variety of features that make it an ideal choice for a wide range of applications in the industrial, automotive, and consumer electronics sectors. This microcontroller is built around Microchip's legendary PIC architecture, known for its low power consumption, high efficiency, and reliability.

Key Features:

  • Memory: The device comes with 512 x 12 words of program memory and 24 x 8 bytes of data RAM, providing sufficient space for simple to moderately complex applications.
  • I/O Ports: It features 20 I/O pins that offer ample interfacing capabilities with peripheral devices.
  • Instruction Set: The PIC16C55-RC/P supports a versatile 33-instruction set that facilitates easy programming and quick development.
  • Speed: With an operating speed of up to 20 MHz, this microcontroller can handle tasks that require quick processing and real-time responses.
  • Power Consumption: It operates within a voltage range of 2.5V to 5.5V, ensuring low power consumption for battery-powered and energy-sensitive applications.
  • Package: The device is available in a 28-pin DIP (Dual In-line Package), which is suitable for breadboard prototyping and easy mounting on PCBs.
  • Temperature Range: The PIC16C55-RC/P is designed to operate within an extended temperature range, making it robust for various environmental conditions.

Applications:

The flexibility and reliability of the PIC16C55-RC/P make it a preferred choice for applications such as:

  • Automotive control systems
  • Home appliances
  • Security systems
  • Industrial automation
  • Consumer electronics

Overall, the PIC16C55-RC/P microcontroller from Microchip Technology offers a balanced combination of performance, power efficiency, and ease of use, making it an excellent option for designers looking to create cost-effective and reliable embedded systems.
