Product Overview: MIC2212-MKYML-EV from Microchip Technology

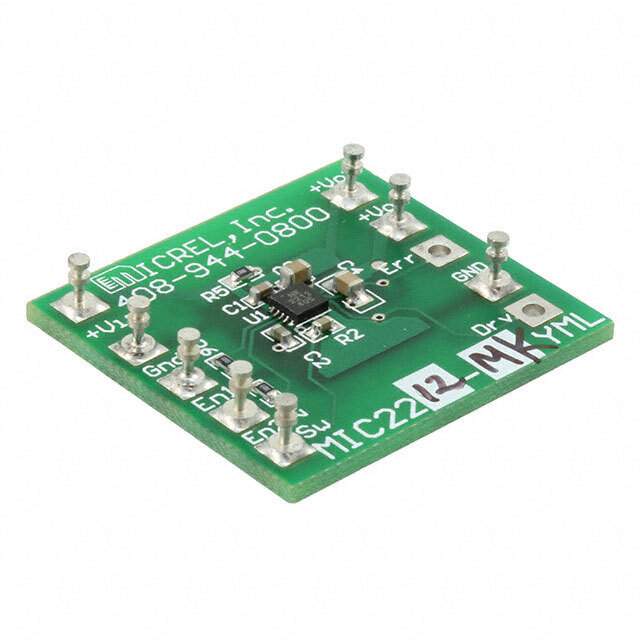

The MIC2212-MKYML-EV is a highly efficient, compact, and feature-rich evaluation platform designed by Microchip Technology. This evaluation board showcases the capabilities of the MIC2212, a dual 300mA LDO (Low Dropout Regulator) with a power good indicator and a comprehensive suite of protection features. The MIC2212-MKYML-EV is tailored for engineers and designers looking to test the performance of the MIC2212 in various applications, including but not limited to portable devices, wireless peripherals, and IoT (Internet of Things) modules.

Key Features

• Dual LDO Channels: The MIC2212 offers two independent LDO channels, each capable of supplying up to 300mA of output current, which can be invaluable for powering multiple subsystems within an electronic device.
• High Accuracy: With an impressive accuracy of ±2%, the regulator ensures precise voltage delivery, critical for sensitive components and to maintain system stability.
• Low Dropout: The low dropout feature allows the regulator to continue delivering a stable output even when the input-to-output voltage differential is minimal, making it ideal for battery-operated applications where maximizing battery life is crucial.
• Power Good Output: An integrated power good (PG) output provides a real-time status indicator, which can be used for power sequencing and monitoring the health of the power supply.
• Thermal Shutdown and Current Limit: Built-in thermal shutdown and current limit protections safeguard the device against excessive power dissipation and over-current conditions, ensuring the longevity and reliability of both the MIC2212 and the application it powers.
• Adjustable Output Voltage: The evaluation board allows for easy adjustment of the output voltage, giving users the flexibility to test different voltage scenarios and requirements.

Applications

The MIC2212-MKYML-EV is versatile enough to be utilized in a broad spectrum of applications. It is particularly well-suited for scenarios that demand a stable and reliable power supply, such as:

• Smartphones and Tablets
• Bluetooth® Headsets and Wearable Technology
• GPS and Portable Navigation Devices
• Health and Fitness Monitors
• IoT Devices and Smart Sensors

With its combination of dual-channel operation, high accuracy, and robust protection features, the MIC2212-MKYML-EV from Microchip Technology stands as an exemplary solution for designers aiming to evaluate and implement a dependable power management system in their electronic products.
