Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Reel - TR
Status Active
Purpose Temp Monitoring System (Sensor)
Sensor Type Internal
Sensing Temperature -40°C to 125°C
Accuracy ±3°C(Max)
Topology ADC (Sigma Delta), Register Bank
Output Type I²C/SMBus
Output Alarm No
Output Fan Yes
Supply Voltage - Operating 3 V to 3.6 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 8-DFN (2x3)

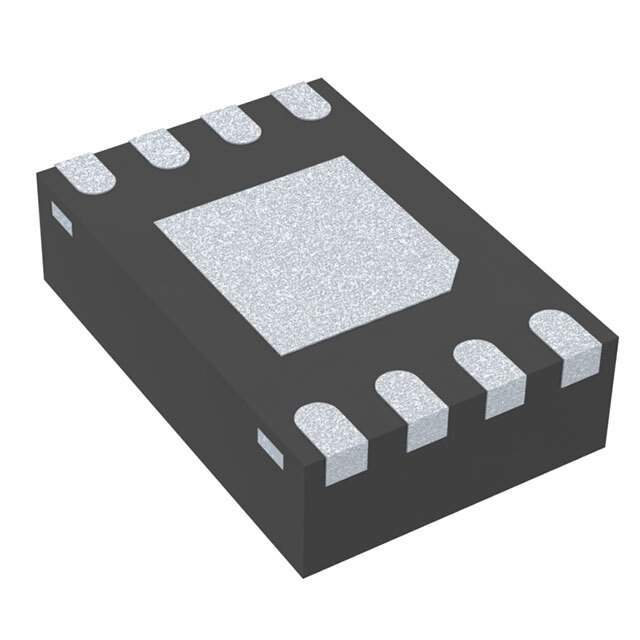

Win Source Part Number 044648-MCP9805T-BE/MC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MCP9805T-BE/MC CAD Model

Description

The MCP9805T-BE/MC is a high-accuracy, digital temperature sensor from Microchip Technology. This sensor is engineered to meet the rigorous demands of high-performance applications that require precise temperature monitoring. With its compact design and versatile features, the MCP9805T-BE/MC is an ideal solution for advanced systems in a variety of markets such as consumer electronics, industrial, and automotive sectors.

Key Features

  • Accuracy: The MCP9805T-BE/MC boasts an impressive ±0.25°C (typical) accuracy from -40°C to +125°C, ensuring reliable and precise temperature readings.
  • Resolution: It offers user-selectable measurement resolution ranging from 9 to 12 bits, allowing for flexibility in balancing the resolution and conversion time.
  • Interface: The sensor communicates via a 2-wire I²C-compatible serial interface, which simplifies integration into existing systems and supports multiple device networking.
  • Operating Voltage: It operates across a wide voltage range of 2.7V to 5.5V, making it suitable for various applications and power conditions.
  • Programmable Alert Output: A programmable temperature alert output is available, which can be configured for overtemperature shutdown or undertemperature warning, enhancing system safety and reliability.

Applications

The MCP9805T-BE/MC is a versatile component that can be employed in a broad array of applications due to its high accuracy and programmable features. Common applications include:

  • Thermal management systems in computers and servers
  • Office electronics such as printers and copiers
  • Industrial systems including HVAC and refrigeration
  • Medical equipment where precise temperature control is critical
  • Automotive climate control and battery temperature monitoring

Additional Information

For designers and engineers looking to integrate the MCP9805T-BE/MC into their systems, Microchip Technology provides comprehensive technical documentation, including datasheets, application notes, and design guides. These resources are designed to facilitate a smooth design-in process and accelerate time to market for products utilizing this advanced temperature sensor.
