AD594AQ Temperature Sensor by Analog Devices Inc.

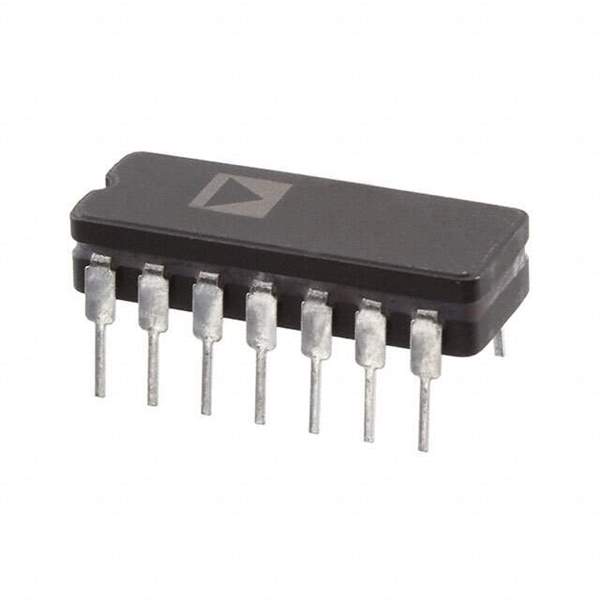

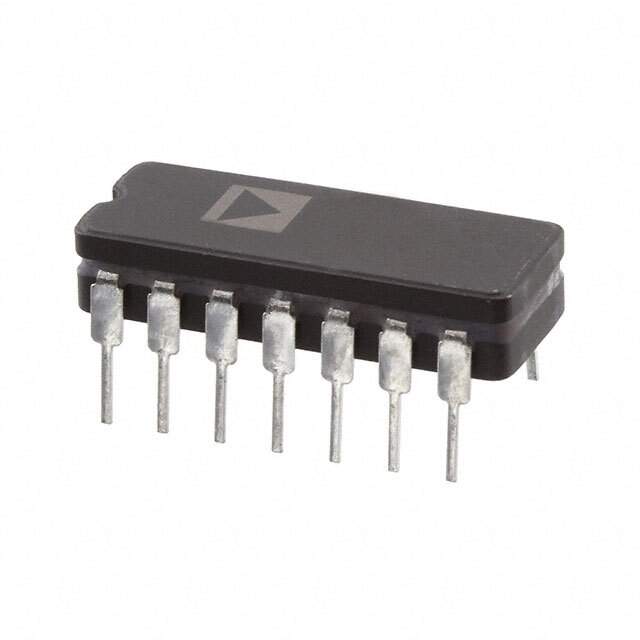

The AD594AQ is a precision integrated circuit temperature transducer from Analog Devices Inc. that combines an on-chip thermocouple amplifier with an internal cold junction compensation circuit. This innovative product is designed to simplify the task of measuring temperatures using thermocouples, offering a high level of accuracy and convenience in a compact form factor.

One of the standout features of the AD594AQ is its ability to provide a linear output voltage directly proportional to the input temperature. This means that users can easily interpret the readings without the need for complex calculations or additional circuitry. The device is calibrated for Type J thermocouples, which are made from iron and constantan, and can accurately measure temperatures ranging from 0°C to +50°C for the cold junction and +25°C to +400°C for the thermocouple hot junction.

The AD594AQ comes in a robust 14-pin Ceramic DIP (CDIP) package that ensures durability and reliable performance even in harsh industrial environments. Its exceptional temperature accuracy, typically within ±1°C, makes it an ideal choice for precision temperature monitoring and control applications across various sectors, including process control systems, non-contact temperature measurement instruments, and HVAC systems.

With its built-in cold junction compensation, the AD594AQ eliminates the need for additional components and simplifies the design of temperature sensing systems. The device operates on a single supply voltage, ranging from +5V to +15V, which further reduces the complexity and cost of the associated power supply circuitry. Additionally, it provides a convenient signal conditioning solution by amplifying the low voltage output of the thermocouple to a level that can be easily read by analog-to-digital converters or other monitoring equipment.

In summary, the AD594AQ temperature sensor by Analog Devices Inc. stands as a remarkable example of precision engineering, offering a straightforward, highly accurate solution for thermal measurement with thermocouples. Its integration of amplifier and temperature compensation features streamlines the design process for engineers and enhances the reliability of temperature sensing systems.
