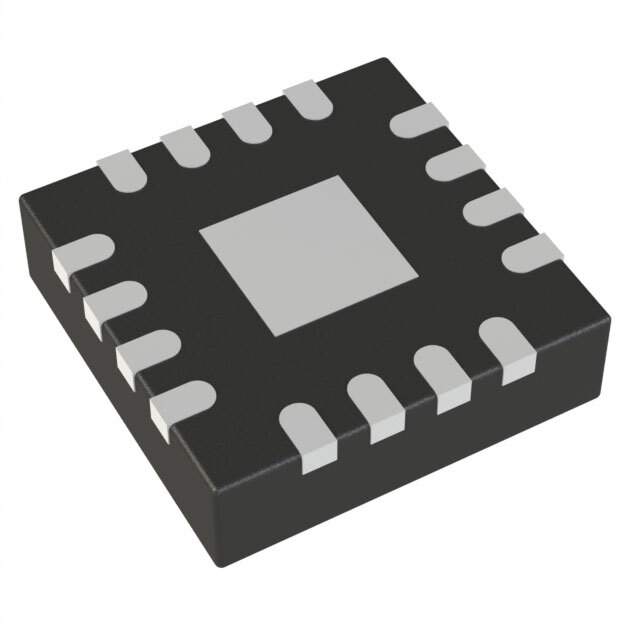

Microchip Technology MCP47CMB22-E/MG Digital-to-Analog Converter

The MCP47CMB22-E/MG from Microchip Technology is a high-performance, dual-channel 12-bit Digital-to-Analog Converter (DAC) designed to deliver precision and flexibility in a compact package. This device is ideal for a wide range of applications including industrial automation, process control, medical equipment, and consumer electronics where accurate analog signal generation is crucial.

Key Features

• Resolution: The MCP47CMB22-E/MG features a 12-bit resolution, providing fine granularity and high precision in analog output.
• Dual Channel: With two independent DAC channels, it allows for simultaneous output of two analog signals, increasing the versatility of the device.
• Interface: The device includes an I2C compatible serial interface, supporting standard (100 kHz), fast (400 kHz), and high-speed (3.4 MHz) modes, enabling easy integration with most microcontrollers.
• Low Power Consumption: Designed for power-sensitive applications, it offers a low-power operation which helps in extending battery life for portable applications.
• Voltage Reference: The MCP47CMB22-E/MG comes with an internal voltage reference, reducing the need for external components and simplifying the design.
• Output Range: It supports Rail-to-Rail output, ensuring maximum dynamic range which is particularly useful in audio applications and signal generation tasks.
• Packaging: The device is available in a compact 10-MSOP package, making it suitable for space-constrained applications.

Applications

The versatility of the MCP47CMB22-E/MG allows it to be used in various applications, including:

• Automated Test Equipment (ATE)
• Battery-powered devices
• Data acquisition systems
• Digital gain and offset adjustment
• Portable instrumentation

Microchip Technology's MCP47CMB22-E/MG DAC is designed with the perfect blend of size, power efficiency, and performance, providing an ideal solution for designers looking to improve their analog output capabilities with minimal design effort. Its robust feature set ensures that it can meet the needs of even the most demanding analog output tasks.
