Microchip MCP3202T-CI/MS Product Overview

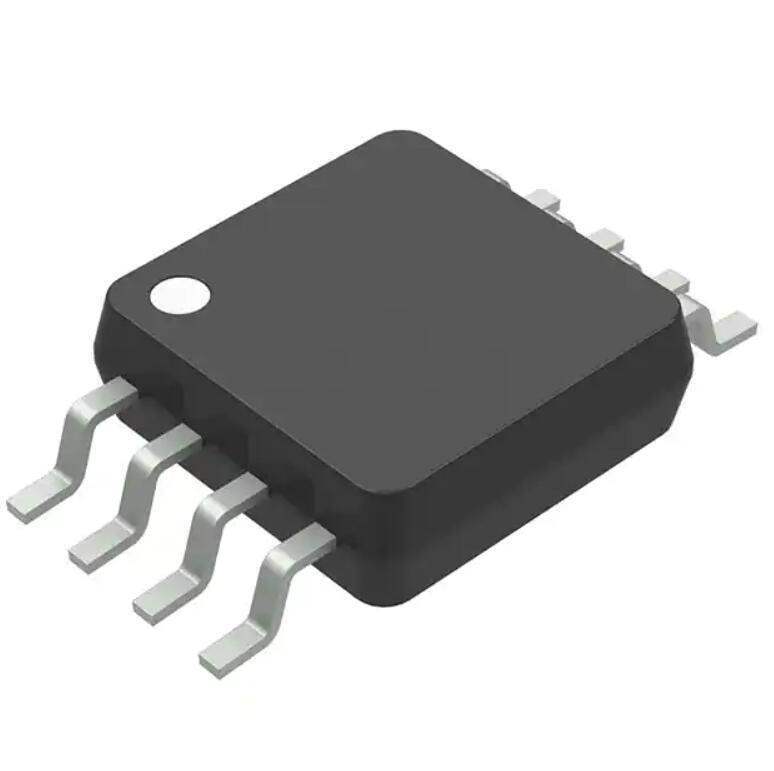

The MCP3202T-CI/MS is a high-performance, low-power, 12-bit analog-to-digital converter (ADC) from the esteemed Microchip Technology. It is part of the MCP3202 series and comes in a compact MSOP-8 package, designed to offer a blend of precision, power efficiency, and versatility, making it an ideal choice for a wide range of applications.

Key Features

• Resolution: The MCP3202T-CI/MS boasts a 12-bit resolution, providing fine detail in the analog signal conversion process, ensuring high accuracy and precision in measurement.
• Channels: This ADC features two single-ended input channels. Users can also configure the device to have one differential input pair, offering flexibility in signal acquisition.
• Sampling Rate: With a maximum sampling rate of 100 ksps (kilo-samples per second), it is well-suited for high-speed applications that require rapid data acquisition.
• Interface: The device communicates with microcontrollers via a simple SPI (Serial Peripheral Interface), allowing for easy integration into digital systems.
• Supply Voltage: It operates on a single 2.7V to 5.5V power supply, accommodating a variety of power environments and ensuring compatibility with both 3.3V and 5V systems.
• Low Power Consumption: The MCP3202T-CI/MS is designed for power-sensitive applications, with its low current consumption contributing to extended battery life in portable devices.
• Extended Temperature Range: This ADC is operational over an industrial temperature range of -40°C to +125°C, making it reliable in extreme environmental conditions.

Applications

The versatility of the MCP3202T-CI/MS enables its use across various sectors, including:

• Data Acquisition Systems
• Battery-Powered Devices
• Industrial Process Control
• Medical Instruments
• Automotive Electronics

In conclusion, the MCP3202T-CI/MS is a robust and efficient solution for system designers looking to enhance their applications with precise analog-to-digital conversion. Microchip Technology's commitment to quality ensures that this ADC stands out for its reliability and performance.
