Microchip Technology MCP23X17EV Evaluation Board

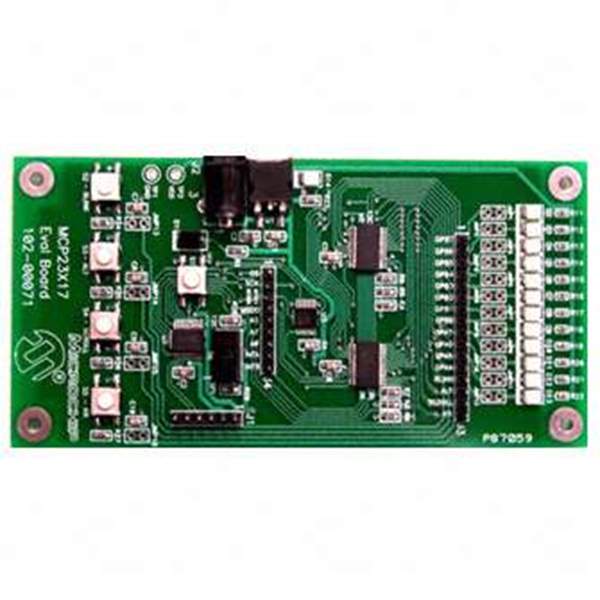

The MCP23X17EV is an evaluation board from Microchip Technology designed to demonstrate the capabilities of the MCP23017 and MCP23S17, which are 16-bit I/O expanders with serial interface options. This evaluation board is a versatile tool for developers and engineers looking to explore the functionalities of these I/O expanders in their applications.

Key Features

• Interface Options: The MCP23017 uses the I2C interface, while the MCP23S17 utilizes the SPI interface, providing flexibility for different communication requirements.
• 16-bit I/O Ports: Each expander offers 16-bit I/O ports that can be configured as input or output, making it suitable for a wide range of applications.
• Configurable Polarity: Input polarity of the ports can be configured through software, allowing for easy integration with various logic levels.
• External Interrupt Output: An external interrupt output can be configured to signal a change on the input pins, facilitating efficient system responses.

Applications

The MCP23X17EV evaluation board is ideal for testing and prototyping in applications such as:

• Home automation systems
• Industrial control systems
• Automotive applications
• Robotics
• Consumer electronics

Easy to Use

This user-friendly evaluation board comes with an easy-to-access test point layout, making it straightforward to monitor the I/O expander's operations. It is designed for quick setup and integration with existing systems, allowing developers to focus on their application without worrying about the complexities of I/O management.

Support and Resources

Microchip Technology provides extensive support for the MCP23X17EV, including detailed datasheets, technical documentation, and application notes. Additionally, the Microchip online community and customer support are available to assist with any questions or challenges that may arise during development.
