Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Controllers
Mfr Microchip Technology
Package Tray
Protocol USB
Function Hub Controller
Interface I2C, SMBus, SPI, UART
Standards USB 2.0, USB 3.1
Voltage - Supply 1.08V ~ 1.32V, 3V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)

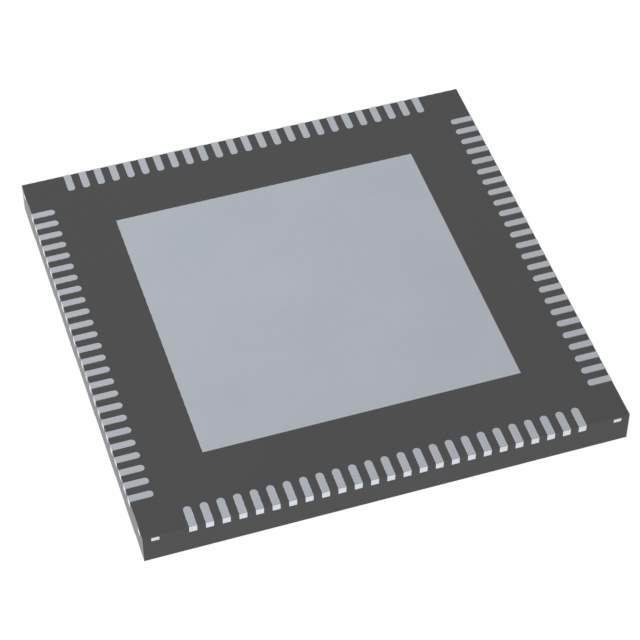

Package / Case 100-VFQFN Exposed Pad
Supplier Device Package 100-VQFN (12x12)
Base Product Number USB5926
Standard Package 168
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1342866-USB5926C-I/KD
Ultra Librarian 3D Model Ultra Librarian USB5926C-I/KD CAD Model

Description

Microchip Technology USB5926C-I/KD High-Speed USB Hub Controller

The USB5926C-I/KD is a state-of-the-art USB hub controller from Microchip Technology, designed to provide a seamless and efficient interface for connecting multiple USB devices to a single host system. This high-speed USB 2.0 compliant hub controller is an ideal solution for expanding USB capabilities in a wide range of applications including personal computers, docking stations, monitors, and other consumer electronics.

With its integrated 2:1 multiplexer, the USB5926C-I/KD offers the flexibility to manage upstream connections from two different hosts, ensuring smooth data management and transfer. This feature is particularly useful in shared environments or dual-role devices where quick switching between host systems is required.

The USB5926C-I/KD supports up to six downstream ports, providing ample connectivity for peripheral devices such as keyboards, mice, external storage, and other USB-enabled gadgets. Each port is designed to deliver reliable performance with over-current protection, ensuring that connected devices are safeguarded against power surges or excessive current draw.

This hub controller is equipped with Microchip's proprietary FlexConnect technology, which allows a downstream port to become an upstream port, offering unparalleled versatility in USB connectivity. This feature is especially beneficial in applications where role reversal between host and device is necessary, providing a smooth and user-friendly experience.

The USB5926C-I/KD is designed for simple integration into system designs, with configurable GPIOs that can be used for various system-specific functions, such as LED indicators for port status or power management signaling. It is available in a 100-pin VTLA package, which is suitable for compact and high-density PCB layouts.

Overall, the Microchip Technology USB5926C-I/KD hub controller is a robust and versatile solution for expanding USB connectivity. Its high-speed performance, coupled with advanced features like FlexConnect and integrated multiplexing, make it an excellent choice for designers looking to enhance their system's USB capabilities.
